 Post subject: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 5:27 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Hello I am about to undertake a T5 manual conversion into my currently automatic EF falcon and I was after some guidance as to the best way to set up the pedals. After looking through this page and others I have found 3 different options (thus far). Option one is to source and fit a manual pedal box from an EF falcon although I have heard it is a big task and they are susceptible to breaking. Second option is to use a mal wood clutch pedal pin but once again I have heard these are susceptible to breakage (I understand anything could break but these are known for easily and prematurely breaking.) and the third option is to modify the existing automatic pedal box as shown in the thread on - http://www.boostedfalcon.net/viewtopic.php?f=35&t=10114

Please help me with this decision! Any other methods would be greatly appreciated! Thank you!
Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 5:34 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Ive done the pedal box swap, and pulled it back out to weld when it cracked..

Converting an auto box still involves removing the pedalbox from the car..

Ill be getting the mal wood kit when I do my next one.
the design has been reviewed and they use 10mm plate now and an extra bolt. so they seem pretty strong..

Its not that hard to remove the dash, just takes time getting all the screws an some of the clips will break.

for $110 and 30 mins the pin kit looks worth it.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 5:36 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Get a MalWood pin...much easier than ripping the dash out to put a box in. Going to convert mine back to auto and not looking forward to pulling the pedal box back out.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 10:12 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Cheers for the help lads. Should I still add extra strengthing using the Mal wood?
Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 11:26 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

It's been revised I believe, and made from 10mm plate, with an extra bolt hole that lines up to an existing hole for extra strength.

It's pretty sturdy looking. I'd say it will work well as it is.

Also look at getting a firewall reinforcement plate done up at the same time or soon after.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sat Feb 08, 2014 11:27 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

i wouldnt worry about it,my MW pin looks like it will hold up.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sun Feb 09, 2014 2:08 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

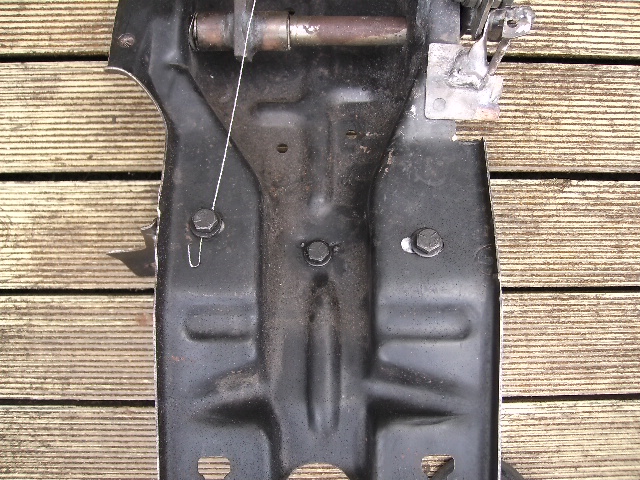

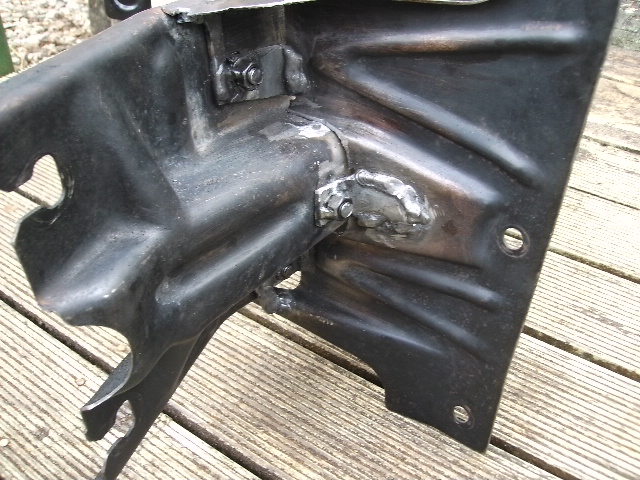

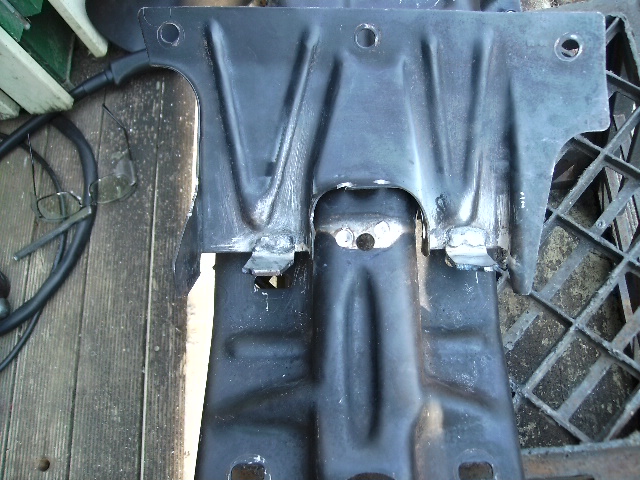

If you have a welder, you could make your own pin - as you can see in XR_Lane's doco (IIRC he posted that on here too)another brake pin end can be used. Weld a base plate to a cut down pin, and have another plate slip over the pin on the other side.
If you need to know the pin dimension, see my similar doco in the Tech docs section.

I'm trialling hydraulic clutch setups, so to make pedalbox remove/install easier, make the T piece a separate component.





Attachments:
BILD0293.JPG [ 218.44 KiB | Viewed 96 times ]
BILD0286.JPG [ 186.24 KiB | Viewed 93 times ]
BILD0291.JPG [ 193.11 KiB | Viewed 91 times ]



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EF T5 Manual Conversion
Posted: Sun Feb 09, 2014 1:15 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Thanks heaps for your help guys! greatly appreciated!
