BF XR6 - ICC Security Code Error



Page 1 of 1 [ 4 posts ]


 Post subject: BF XR6 - ICC Security Code Error
Posted: Mon Oct 27, 2014 5:48 pm
Parts Gopher
Offline
User avatar

Age: 38

Posts: 57

Joined: 12th Sep 2007

Ride: BF Falcon XR6 N/A

Location: Western Sydney
NSW, Australia

Hi All, its been a while since I was off this forum because I sold that EF I had. Its about time I am a proud owner of 2006 BF XR6 N/A, 6 speed manual with 135Ks on the clock, I am in love with it so far.

I decided to change the ICC from poverty pack to premium ICC with single zone climate from a donor BA. I swapped out the ICC and used my existing BEM with it so the car starts fine, Air con controls work well except ICC screen shows "Security Error Code" on screen.

According to my research I have read that if I have seated the ICC properly and have used my existing BEM for the car then I shouldnt have a problem, therefore I have reseated ICC number of times after resetting the rear white plug to no avail, please see attached pics.

Attachment:

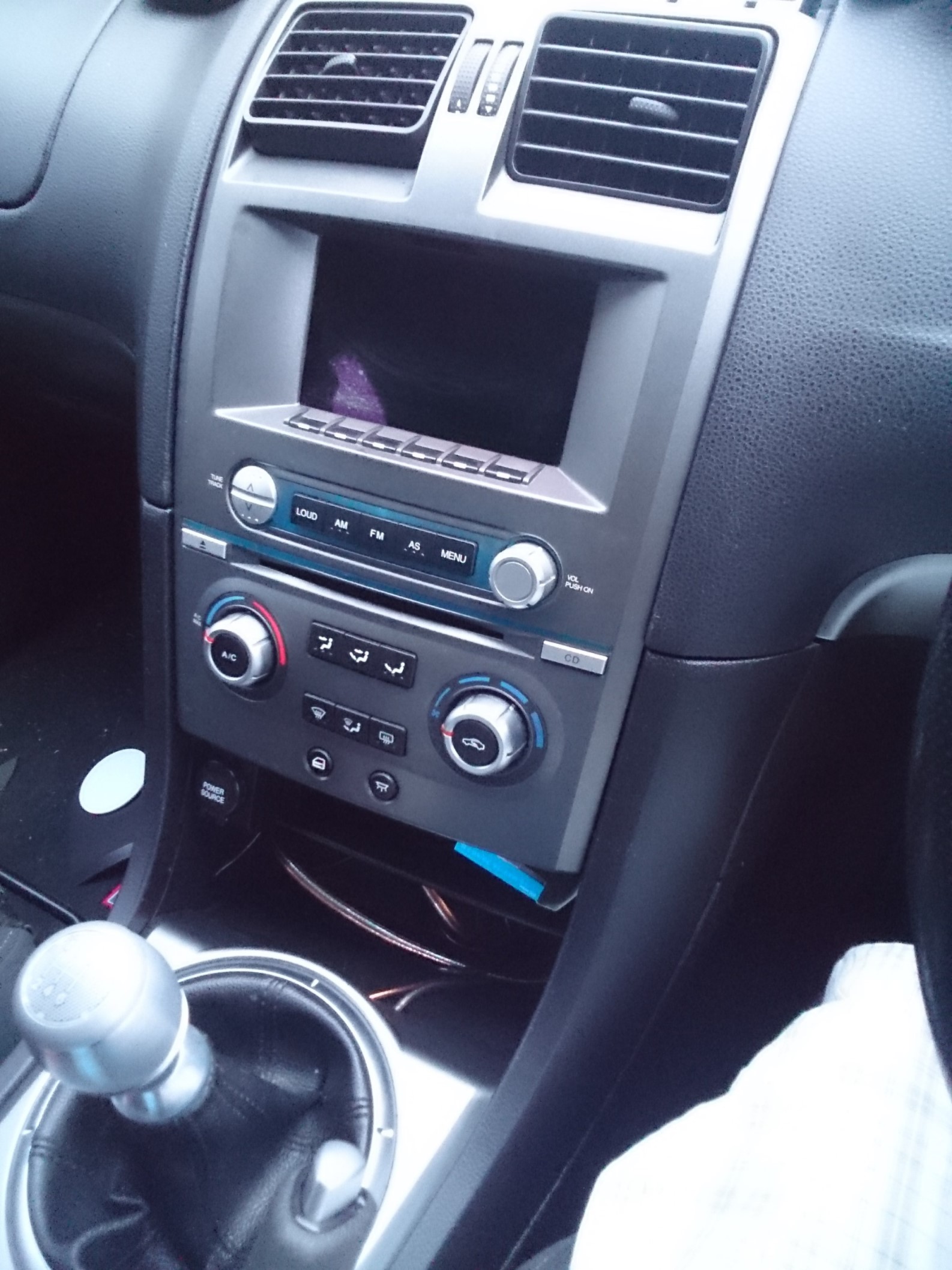

File comment: Installed
DSC_0020.JPG [ 496.25 KiB | Viewed 605 times ]


Attachment:

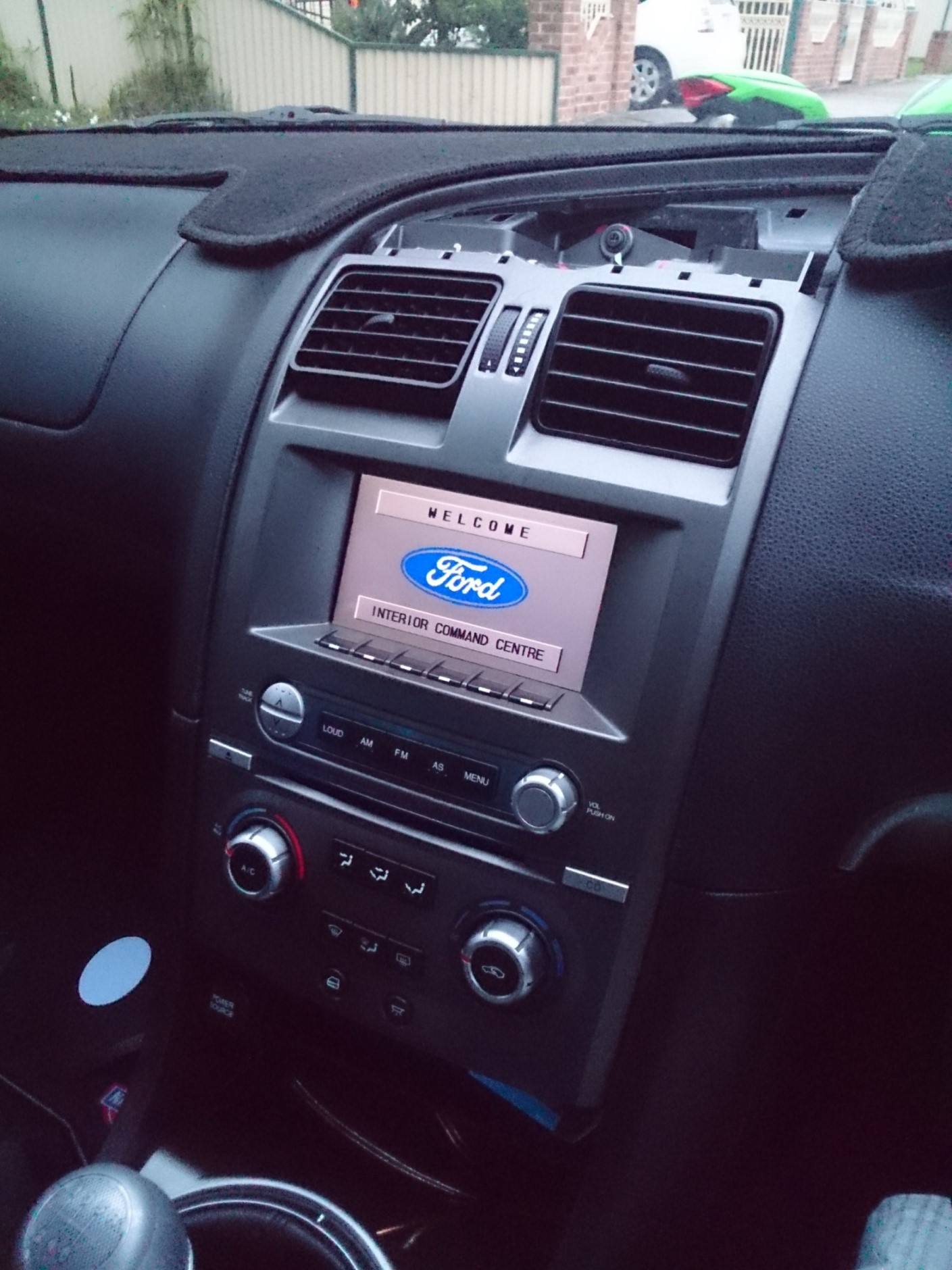

File comment: When first turned ON
DSC_0021.JPG [ 428.86 KiB | Viewed 553 times ]


Attachment:

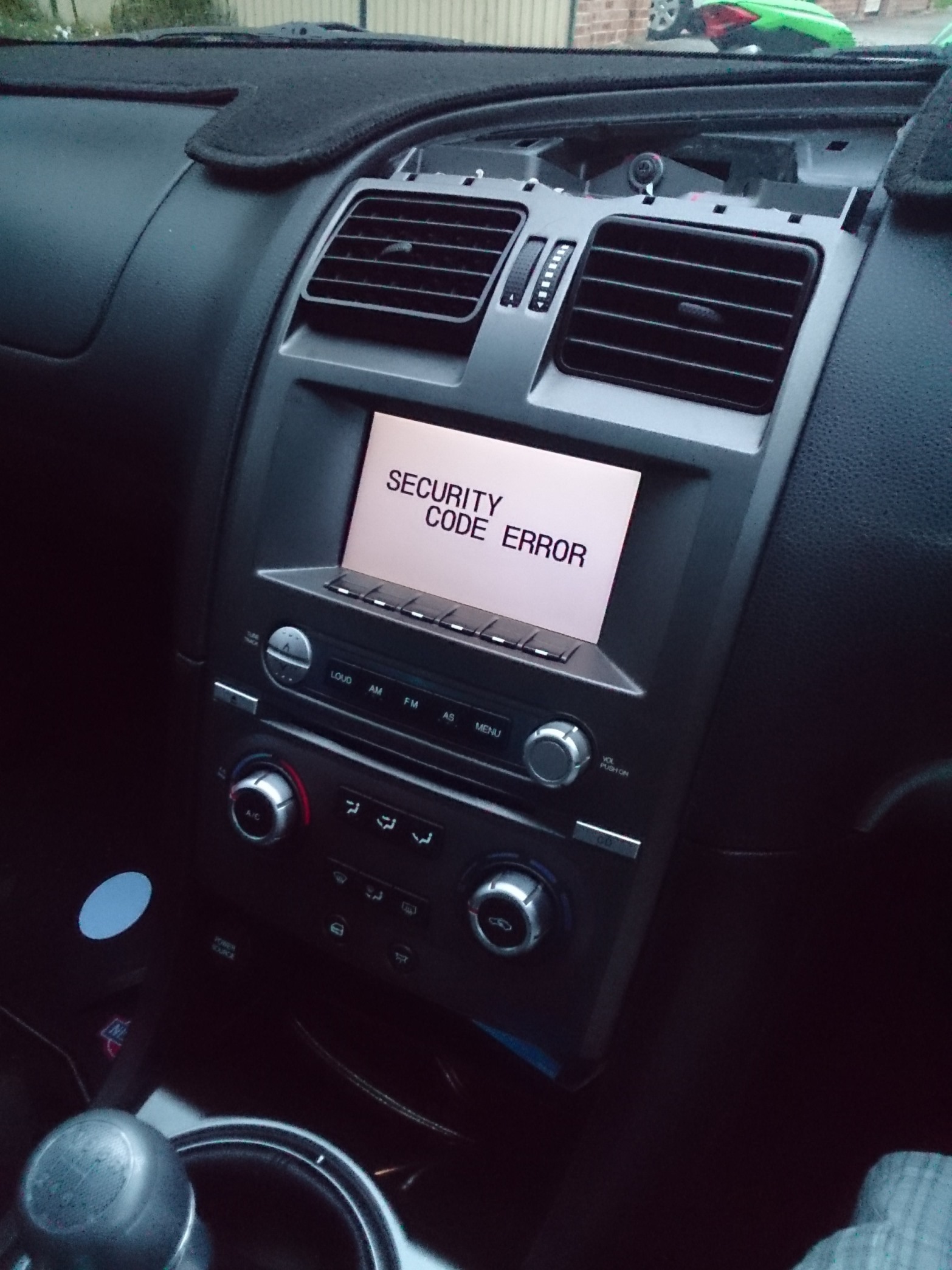

File comment: Security Error Code
DSC_0022.JPG [ 492.25 KiB | Viewed 617 times ]


I want some advice before I book it in at FORD Stealership who are asking $140 to look at it and diagnose the problem

Thanks in advance for any help.



_________________

2006 BF Falcon XR6 N/A - <current>
1995 EF Falcon Futura

Top
 Profile


 Post subject: Re: BF XR6 - ICC Security Code Error
Posted: Mon Oct 27, 2014 6:18 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 402

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

Fairly sure you still need to get the radio coded to the car to match the BEM/PCM

you can test the radio side of things by holding menu and am together with the Ignition on

this gives you about 5 mins use before the security code thing comes up again



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: BF XR6 - ICC Security Code Error
Posted: Mon Oct 27, 2014 6:30 pm
Parts Gopher
Offline
User avatar

Age: 38

Posts: 57

Joined: 12th Sep 2007

Ride: BF Falcon XR6 N/A

Location: Western Sydney
NSW, Australia

H Robert,

Thanks for your reply, i'll try what you have suggested and will report back.

Regards,



_________________

2006 BF Falcon XR6 N/A - <current>
1995 EF Falcon Futura

Top
 Profile


 Post subject: Re: BF XR6 - ICC Security Code Error
Posted: Tue Oct 28, 2014 2:59 am
Parts Gopher
Offline
User avatar

Age: 38

Posts: 57

Joined: 12th Sep 2007

Ride: BF Falcon XR6 N/A

Location: Western Sydney
NSW, Australia

Hi Robert,

I tried what you told me, I get the stereo working for 5 minutes so it verified that connection wise there is nothing wrong.

Tested all 6 CDs load, AirCon functions do show up correctly n all, thanks for your help.

I guess i'll book in at a stealership to get stereo programmed into BEM.

Regards,



_________________

2006 BF Falcon XR6 N/A - <current>
1995 EF Falcon Futura
