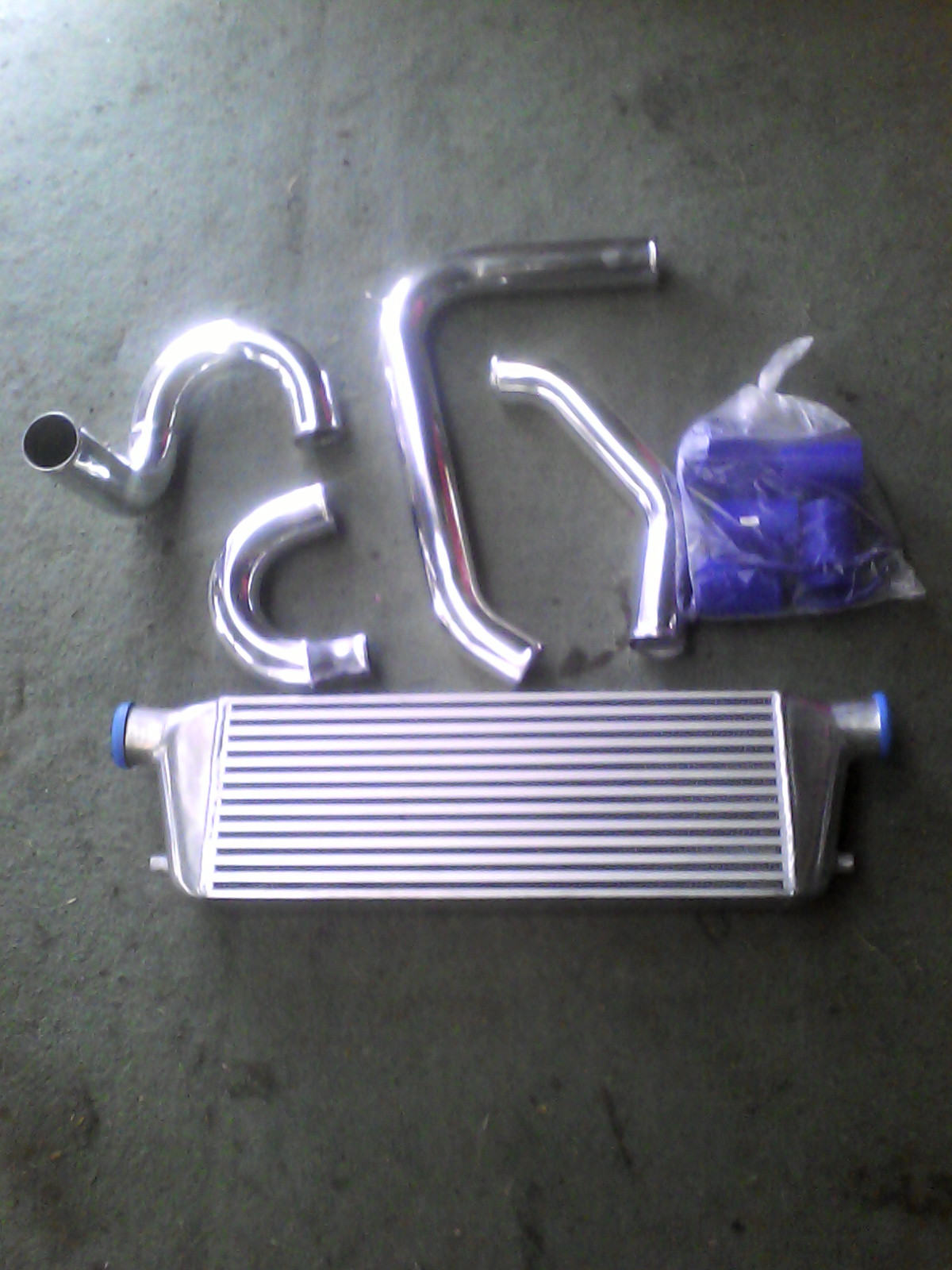

Got one of these eBay kits has anyone fitted one of these as they don't come with instructions or picks any picks of yours would be great to use as refrence sute 03 baturbo





Attachments:

IMG_20151029_182615.jpg [ 341.26 KiB | Viewed 379 times ]

The long pipe and C pipe will go throttle body side .. The other .. Drivers / turbo side ?

I tort that to but it don't add up only one I've worked out is c pipe from ic to std pipe without pulling everything down as need the car everyday I would a tort someone had of got one of these that's why just asking because it don't look like most of the piping goes and the seller is as usles as tits on a bull as eBay sellers are bloody gooks

i got one of those HDI ones off ebay looks very similar to your kit except for the mounting points on the cooler its self, the instructions which i think i had to print off myself were s**t them. i ended up making up all my own mounting brackets. but all the piping that came with it fitted no worries.

The C shaped one is HOT side off as you have worked out.

The C shaped one that turns and faces up goes Cold side C shape off the inter cooler the long bit facing up into the engine bay.
The bit along side your bag of silicone joiners goes next
Lastly the bit with the Nipple on it in the corner goes to the factory X over the short bit into the X over. the nipple on that bit of pipe should finish around the corner of the rocker cover and connects to the existing boost sensor. I will link in a set of instructions to the HDI one i got hopefully they may help you.

http://photos.imageevent.com/kadepunk/h ... lation.pdf

After fitting your car MAY, suffer from over boost issues. you will need to see a tuner and have the car dyno'd to fix that.


NOTE, i am no longer using any of the pipe work that came with the cooler i got, i wnded up custom making it to go up under my LHS headlight and onto my relocated TB. I
then made my own hot side based off pictures of the Process west/Plazmaman ones.


Rob

Pic of pipework as fitted for the 100km i used it
