 Post subject: Xh ute no speedo
Posted: Thu Jun 01, 2017 1:43 pm
Fordmods Newbie
Offline

Age: 26

Posts: 6

Joined: 1st Jun 2017

Ride: 98 xh xr6

Location: Brisbane
QLD, Australia

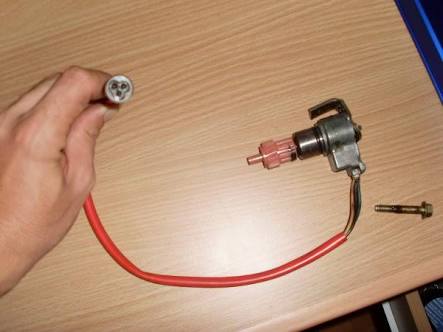

Hi guys new to the forum have a turboed xh ute now had car in a shop and had gearbox out just wondering wherr wiring plugs into as have the speedo drive set in the gearbox with plug but dnt no where that plugs into





Attachments:
images (15).jpg
images (15).jpg [ 17.59 KiB | Viewed 19 times ]
Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Thu Jun 01, 2017 4:44 pm
Fordmods Junkie
Online
User avatar

Posts: 2707

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

i'm presuming it's a manual box? .... should be wiring hanging down from the back of the motor/firewall. unless someone has removed it.
Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Thu Jun 01, 2017 10:20 pm
Fordmods Newbie
Offline

Age: 26

Posts: 6

Joined: 1st Jun 2017

Ride: 98 xh xr6

Location: Brisbane
QLD, Australia

Yeh is a manual box its not standard anymore also so worried when pulling apart its had the harness thrown away would it of plugged into little box on top of manifold
Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Thu Jun 01, 2017 10:39 pm
Fordmods Junkie
Online
User avatar

Posts: 2707

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Turbs xh wrote:
Yeh is a manual box its not standard anymore also so worried when pulling apart its had the harness thrown away would it of plugged into little box on top of manifold



there should be a wiring connecter near the firewall at the back of the inlet manifold for it i believe [unsure of the EF/EL/XH]. for the EA-ED there's a round plug for the auto & rectangle plug for the manual.
Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Fri Jun 02, 2017 1:28 am
Fordmods Newbie
Offline

Age: 26

Posts: 6

Joined: 1st Jun 2017

Ride: 98 xh xr6

Location: Brisbane
QLD, Australia

Cheers will check when i get home from work
Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Fri Jun 02, 2017 10:35 pm
Fordmods Junkie
Online
User avatar

Posts: 2707

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Top
 Profile


 Post subject: Re: Xh ute no speedo
Posted: Mon Jun 05, 2017 1:44 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5585

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

If it's an XHII, that loom won't have the two plugs on the far left, the wires go into a large block connector between no5 & 6 inlet runner.
