odometer reading adjustment



Page 1 of 1 [ 14 posts ]


 Post subject: odometer reading adjustment
Posted: Sat Aug 20, 2011 8:51 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

hey guys just got myself a second hand dash cluster for our AU 6x2 workute.
im changing it from a standard one to a tickford one for the extra gauges.

what i need to know is how do i adjust the odometer reading to macth the orginal one i need to take it from 124000 up to 145000 k's


cheers jk
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 8:59 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

if its the same as an ef/ el they have a chip in the back that holds the memory of the odometer the only way that i know to swap the odo reading is to carefully remove this chip on both of them and put the chip from your old odometer reading into the new cluster and re solder back on, but you need to be gentle because if it gets too hot or damaged you will lose the odometer reading on it



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 9:01 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

i found this in the tech docos
Quote:
Obviously, when swapping Instrument clusters, you will want to keep the same Odometer Readings for your vehicle.
Because the EF and EL series vehicles have a digital Odometer, simply cracking open, and winding the Odometer backwards will not work.
So how is the Odometer reading changed ?
Firstly, you will need to know a little bit about electronics.
The Odometer Reading, as well as the Trip meter, Service spanner setting, and possibly other settings, are stored in a device known in the Electronics industry as an EEPROM, or E2PROM, (pronounced E squared Prom).
An E2PROM is an Electrically Erasable, Electrically Programable, Read Only Memory, very similar to the Flash upgradable Computer Bios.
Anyway, without boring you on how an E2PROM works, the model used in the VDO Instrument Clusters is an X24C44 Surface Mount model.
As was previously mentioned, this chip is surface mounted, that is you will need special tools in order to remove it.
It is this chip that stores the Odometer, as well as other readings.
When swapping Instrument Clusters, you will need to De-Solder this chip, and swap it from your Original Instrument Cluster, to your new Instrument Cluster.
WARNING : I take no responsibility for any Damage that may be caused through any actions that are taken, that are directly, or Indirectly related to the information provided herein !
This is a small, delicate, and heat sensitive chip, and as such, is very suceptable to permenant damage, which WILL if damaged, render the instrument cluster USELESS !
Under no circumstances will Matthew I Jones be held responsible for any such damage.
Remember, this site is provided to you, free of charge, and it is up to yourself to correctly determine what modifications can be safely conducted by yourself !



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 10:13 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Going Up is easy, Go to Jaycar and buy a frequency generator (square wave)

attach the output to the speedo input and crank it up to around 300kph.

leave it for 72hours and you'll have 145k's



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 3:39 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

cheers guys for the info
i think ill just keep the odometer as is

but while at work today i swapped over the clusters to check if it works good
everything works great besides the right indercater and the when you turn the head lights on there is no back ground light
ive checked and replaced all the globes but still nothing
do i have to change the ecu and/or bcm to a medium/high series
as the car is a series 3 gli six banger auto and im putting in a series 3 tickford cluster which came with the blue backing

or is the dash f**k as im not to sure with the a series
as im pretty sure the cluster should just be a plug an go item
and i did make sure they are from the same year so there is not mistake between smart lock and smart shield
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 3:51 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

There are loom differences between low and mid series clusters.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 4:03 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

the plugs are the same and everything works besides the right indercater and back ground lighting
surely they must be the same in low an mid series
evrything else works even the PRND321 down the bottom
surely someone else has swapped over the clusters from the one with just the fuel gauage, tacho and speed to a ticky with the two extra gauages with out having to change the whole wire loom over :?:
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 6:59 pm
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

Read this....

documents.php?d=4

Wiring changes required when fitting a Mid/High Series Cluster to a Forte/Futura Model Falcon.
Although the Mid and High Series Clusters will simply plug in, and A L M O S T function, there a re a few changes you will need to make, in order to get the Cluster to function correctly.
These changes are needed in order for the following to function,

•Dial Illumination with Park Lamps On

•The ABS Warning Lamp to Illuminate correctly

•The Right Hand Side Indicator Lamp to function Correctly

The following wires need to be moved around, in order for the Mid/High Cluster to function correctly,

•1. The Park Lamp Dial (+ Positive) Illumination needs to be moved from Pin 13 to Pin 2.

•2. The Dial Negative Dimmer Illumination needs to be moved from Pin 21 to Pin 3.

•3. The ABS Warning Lamp Wire needs to be moved from Pin 8 to Pin 23

•4. The R.H. Side Indicator wire needs to be moved from Pin 19 to Pin 26

Please Note : In addition to these changes, you will need to also change the Oil Warning Switch, to an Oil Pressure sender unit, and also swap the Odo Reading. (See Below for further details on how to do this)



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sat Aug 20, 2011 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

Read this....

documents.php?d=4

Wiring changes required when fitting a Mid/High Series Cluster to a Forte/Futura Model Falcon.
Although the Mid and High Series Clusters will simply plug in, and A L M O S T function, there a re a few changes you will need to make, in order to get the Cluster to function correctly.
These changes are needed in order for the following to function,

•Dial Illumination with Park Lamps On

•The ABS Warning Lamp to Illuminate correctly

•The Right Hand Side Indicator Lamp to function Correctly

The following wires need to be moved around, in order for the Mid/High Cluster to function correctly,

•1. The Park Lamp Dial (+ Positive) Illumination needs to be moved from Pin 13 to Pin 2.

•2. The Dial Negative Dimmer Illumination needs to be moved from Pin 21 to Pin 3.

•3. The ABS Warning Lamp Wire needs to be moved from Pin 8 to Pin 23

•4. The R.H. Side Indicator wire needs to be moved from Pin 19 to Pin 26

Please Note : In addition to these changes, you will need to also change the Oil Warning Switch, to an Oil Pressure sender unit, and also swap the Odo Reading. (See Below for further details on how to do this)

cheers
one more question do i swap these wires around with each other or do i discard one

EG •4. The R.H. Side Indicator wire needs to be moved from Pin 19 to Pin 26
dose that mean i swap pin 19 with pin 26
or do i place pin 19 to where pin 26 is and no longer use pin 26
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sun Aug 21, 2011 10:42 am
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

Your move pin 19 to pin 26.... the probably isnt anything in pin 26 atm



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sun Aug 21, 2011 1:37 pm
Stock as a Rock
Offline
User avatar

Age: 56

Posts: 108

Joined: 4th Mar 2011

Gallery: 6 images

Ride: au1 V8 1 tonne poverty pac ute

Location: Brisbane
QLD, Australia

Hi, I have done the same mod myself with a series 2 xr cluster and rather than cutting any wires I have spliced a wire with the wire needing to be moved and soldered a connection to the other end so it will fit the desired pin, that way it is a simple task to refit the original cluster if desired, cheers. P.S I am not sure if the series 3 xr cluster can be fitted.



_________________

Don't force it, use a Bigger hammer

Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Sun Aug 21, 2011 3:26 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

gotta luv a v8 wrote:
Hi, I have done the same mod myself with a series 2 xr cluster and rather than cutting any wires I have spliced a wire with the wire needing to be moved and soldered a connection to the other end so it will fit the desired pin, that way it is a simple task to refit the original cluster if desired, cheers. P.S I am not sure if the series 3 xr cluster can be fitted.



cool you would happen to have some pics would you for me to compare

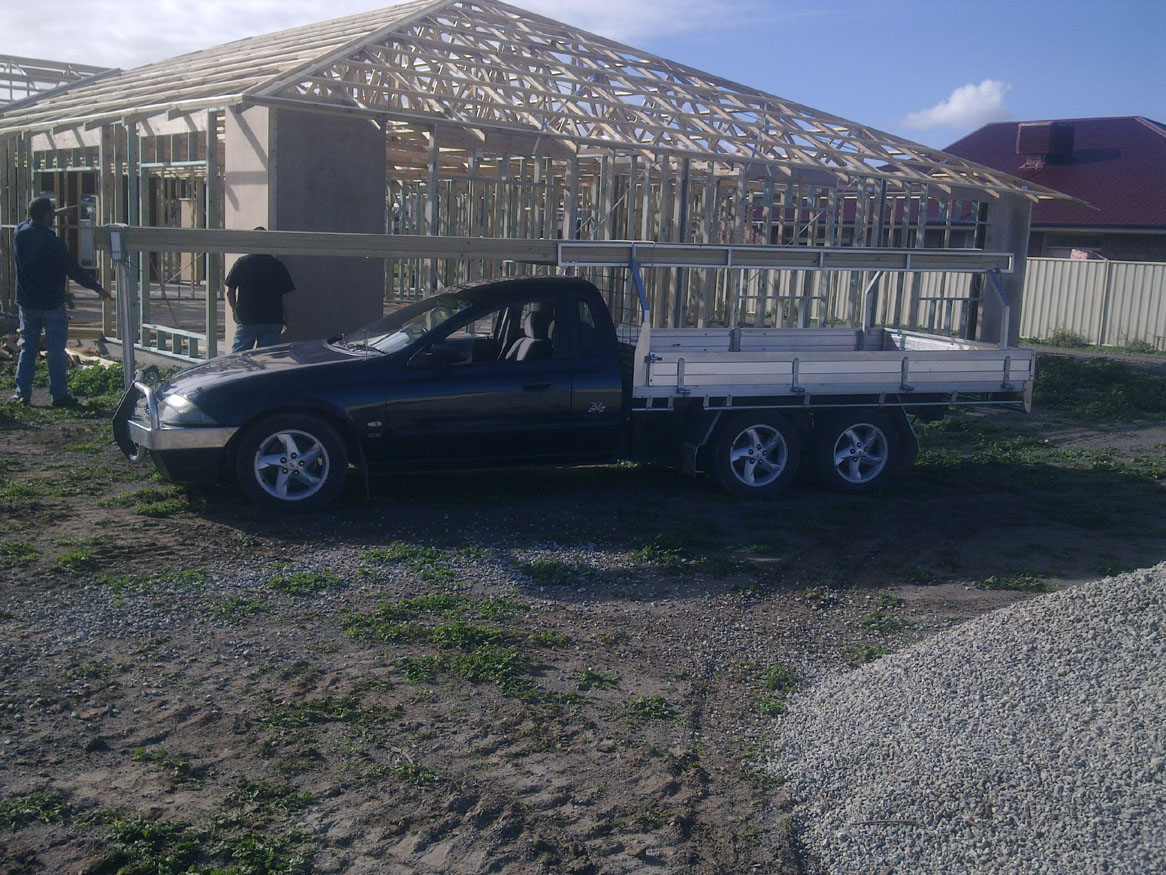

oh and its series 3 xr cluster going into a series 3 forte 6X2





Attachments:
work au ute 6x2 (small) copy.jpg
work au ute 6x2 (small) copy.jpg [ 326.56 KiB | Viewed 89 times ]
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Mon Aug 22, 2011 11:51 am
Parts Gopher
Offline

Age: 34

Posts: 88

Joined: 10th Jul 2009

Ride: 1992 EB Fairmont

Location: Bendigo
VIC, Australia

Sorry to interrupt your thread but anyone who wants a cluster correction they can be done for about $100 and you have to sign a document confirming your not falsifying the km. You can pm me for more details.
Top
 Profile


 Post subject: Re: odometer reading adjustment
Posted: Wed Oct 25, 2017 10:58 pm
Fordmods Newbie
Offline
User avatar

Age: 41

Posts: 7

Joined: 23rd May 2017

Gallery: 5 images

Ride: 1996 XH Uterus

Location: Sydney
NSW, Australia

maca_404 wrote:
Sorry to interrupt your thread but anyone who wants a cluster correction they can be done for about $100 and you have to sign a document confirming your not falsifying the km. You can pm me for more details.


It's been some years, but where are you located?

I have 10/1996 XH Longreach. Looking to put an EL OPT20 dash in it.
First, does it fit straight in?
I read about changing wires around etc, would this be same for OPT20?

My ute has 165xxx Kms, this OPT20 dash has 290XXX... Would love a wind back!
