 Post subject: Rear Bumper Retainer on AU2
Posted: Sun Jun 21, 2020 9:30 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Has anyone got a photo / measurement or both of what that rear bumper retainer looks like?

Mine went missing , I plan to make one. I wont be paying $55.00 for one from the wreckers in Qld.

I have a 2mm thick aluminium plate.

Thanks,
Bondy
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Mon Jun 22, 2020 7:12 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

bondy99 wrote:
Has anyone got a photo / measurement or both of what that rear bumper retainer looks like?

Mine went missing , I plan to make one. I wont be paying $55.00 for one from the wreckers in Qld.

I have a 2mm thick aluminium plate.

Thanks,
Bondy



hey Bondy - sedan? as i'm not sure what/which retainer you mean.
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Thu Jun 25, 2020 3:06 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Mad2,

Thanks for your reply.

The item, could be named differently but though it was a bumper retainer.

On the Ford AU2 Sedan it's a piece of metal that sits under the rear bumper bar and goes from the bumper bar to the underside of the wheel well. From what I gather it is or was held in position with 4 rivets. 2 at the bumper bar and the other 2 rivets would have been at the wheel well.

It's positioned somewhere between the middle and towards the tail pipe, but underneath the bumper bar.

Cheers
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Thu Jun 25, 2020 8:07 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

bondy99 wrote:
Mad2,

Thanks for your reply.

The item, could be named differently but though it was a bumper retainer.

On the Ford AU2 Sedan it's a piece of metal that sits under the rear bumper bar and goes from the bumper bar to the underside of the wheel well. From what I gather it is or was held in position with 4 rivets. 2 at the bumper bar and the other 2 rivets would have been at the wheel well.

It's positioned somewhere between the middle and towards the tail pipe, but underneath the bumper bar.

Cheers



yep sounds similar to what's on her BF sedan. just look at 'where' it was mounted [holes in bumper/wheel well] & go from there..........

otherwise i'm hoping to go back to wreckers & can checkout the piece then if needed.


:mrgreen:
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Fri Jun 26, 2020 6:23 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

G'day Mad2,

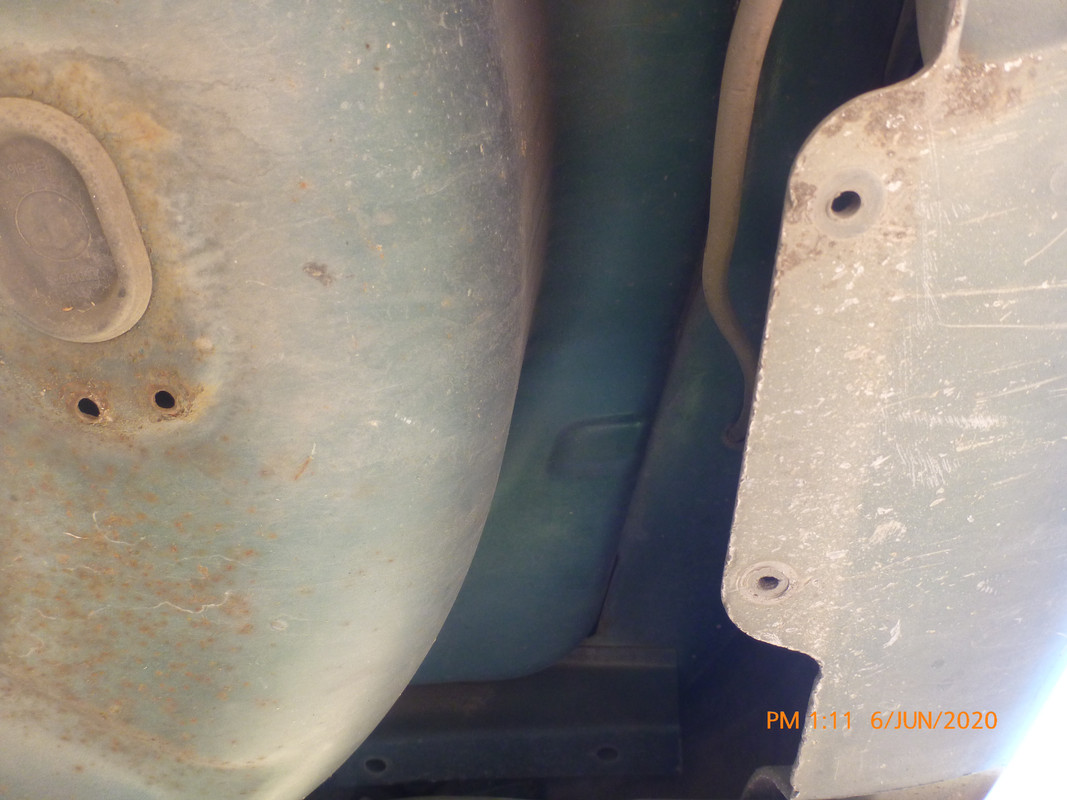

Here's a photo of mounting position.

You'll have to go to the link to see pic.

https://i.postimg.cc/7Z2wkw7z/Place-of- ... tainer.jpg

Cheers,
Bondy
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Sun Jun 28, 2020 2:59 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

bondy99 wrote:
G'day Mad2,

Here's a photo of mounting position.

You'll have to go to the link to see pic.

https://i.postimg.cc/7Z2wkw7z/Place-of- ... tainer.jpg

Cheers,
Bondy



ok.

yours



what i found & going from rivet centre to rivet centre on first two pics.









hope that helps ya Bondy
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Sun Jun 28, 2020 3:52 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Mad 2
Thanks mate, now I got something to go by.

Cheers,
Bondy
Top
 Profile


 Post subject: Re: Rear Bumper Retainer on AU2
Posted: Sun Jun 28, 2020 7:13 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

with the first two pics, i think it was 'about' 155mm between the rivets. i couldn't get the camera where i wanted it to show length clearly.


Goood luck with it :mrgreen:
