 Post subject: XH Cam specs
Posted: Mon Oct 25, 2010 8:14 pm
Oompa Loompa
Offline

Posts: 29

Joined: 10th Dec 2009

Ride: 98 XH Falcon Ute

Location: Cairns
QLD, Australia

Don't shoot me........ Ok, i did a search and I didn't have a win so i was just wondering if any one can give me the specs on my cam it is a stock one i'm just curious info as follows

Background, 98 XHII 4.0, manual and 3.23LSD and it is a non XR6, it made 130rwkw that isn't big power i know but my mate with an EF with a shaved head on it got 110rwkw on the same dyno same day, so all i could think of was the cam.

this is engraved on the cam: 96DA BA, now 96DA i know what that is but what does the BA stand for?
molded onto the cam: WR 2A 62 50 3
and there seemed to be a 7 stamped on the cam gear end of the shaft any ideas?

if this has been asked before could some one post the link to the thread.

knowledge much appreciated.



_________________

XHII Falcon Ute, power 129.1rwkw 303.6Nm
mods: 2.5inch catback dumped at the diff.

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 8:44 pm
Smokin em up
Offline
User avatar

Age: 35

Posts: 295

Joined: 30th Aug 2008

Ride: EF XR6 Wagon

Location: Bendigo
VIC, Australia

The 96DA means that the cam was designed in 1996, which means its an EL specific part, because that's when it came out. 130kW seems like a heap to me, I had an EA with crow cam, extractors, no cat, straight through 2.5" exhaust, CAI, manual and 3.23 LSD and made 125rwkw on 2 different dynos. How much work has the car had done to it, I would be pretty happy with that if I was you!! Does the cam have a splotch of red paint in the center of it, maybe someone dropped in an XR cam, or its a regrind performance cam. You'd have to take it out to check though I think, its usually stamped on the end by the company that does it.
Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 9:04 pm
Oompa Loompa
Offline

Posts: 29

Joined: 10th Dec 2009

Ride: 98 XH Falcon Ute

Location: Cairns
QLD, Australia

It has no engine work from what i can tell i'm only the third owner before me an older tradesman owned it and hardly drove it and before that Mareba shire councle, there is no red sploch on the end of the cam and no name stamped in either end, i have the head off at the moment did a headgasket (170,000km), i like the power but as you do you want more.

the only mod is a cheap cat back exhaust has a resinator then a straight through glasspack muffler and is dumped at the diff 2.5"






_________________

XHII Falcon Ute, power 129.1rwkw 303.6Nm
mods: 2.5inch catback dumped at the diff.

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 9:19 pm
Smokin em up
Offline
User avatar

Age: 35

Posts: 295

Joined: 30th Aug 2008

Ride: EF XR6 Wagon

Location: Bendigo
VIC, Australia

That's cheap power right there then! Nice looking power curve too, mine wasn't anywhere near that smooth on the EA. IMHO 120-130kw is the cheap power, after that it goes way out of proportion, big spends for little gain if you stay N/A. I'm aiming for 170rwkw on the EL which is the same motor as yours as far as I know and I've spent quite a bit already.

If the K's were lower, I'd guess someone put a regrind cam and shaved the head a fair bit for compression when the head-gasket when the first time, but I reckon its probably the first time the head-gasket, plus the previous owner don't seem the sort to do that.
Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 9:22 pm
Getting Side Ways
Offline

Age: 36

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

the 96DA stamped on your cam means its a EL Hybrid camshaft. Which mean you have a AU spec head.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 9:30 pm
Technical Contributor
Offline
User avatar

Age: 60

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Sounds like a Hybrid cam regrind ??
ford-4l-and-6-cylinder-f1/xh-bbm-conversion-t79550.html
Stock XH's run an ED falcon profile cam, 91DA - Feb98 onwards have the same profile, but suit the Hybrid/AU style rocker gear.
I suppose easiest way to check for a regrind while the rocker gear is off is to see if there are two spacers in each lifter hole in the rockers (that's provided the install was done properly), with a std billet there is one.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 9:47 pm
Oompa Loompa
Offline

Posts: 29

Joined: 10th Dec 2009

Ride: 98 XH Falcon Ute

Location: Cairns
QLD, Australia

Thanks snap, just read through the thread you posted, mine is the 6250 B cam but it also has an A engraved next to the B does that mean anything or it is just a 6250 B?



_________________

XHII Falcon Ute, power 129.1rwkw 303.6Nm
mods: 2.5inch catback dumped at the diff.

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 10:13 pm
Stock as a Rock
Offline

Age: 32

Posts: 120

Joined: 1st Jul 2009

Ride: XH falcon ute

Location: mudgee
NSW, Australia

Well if you want more power get the au1645 cam.
Ive got it and its tops. good around cam and if you get it with 114 lobe separation it will have around the same low down as standard. but much more up top.
Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Oct 25, 2010 10:54 pm
Oompa Loompa
Offline

Posts: 29

Joined: 10th Dec 2009

Ride: 98 XH Falcon Ute

Location: Cairns
QLD, Australia

I'm going to get a camtech 846 with a little extra :wink:
i'll start a build thread if i haven't already (can't remember)



_________________

XHII Falcon Ute, power 129.1rwkw 303.6Nm
mods: 2.5inch catback dumped at the diff.

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Fri Oct 29, 2010 2:20 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

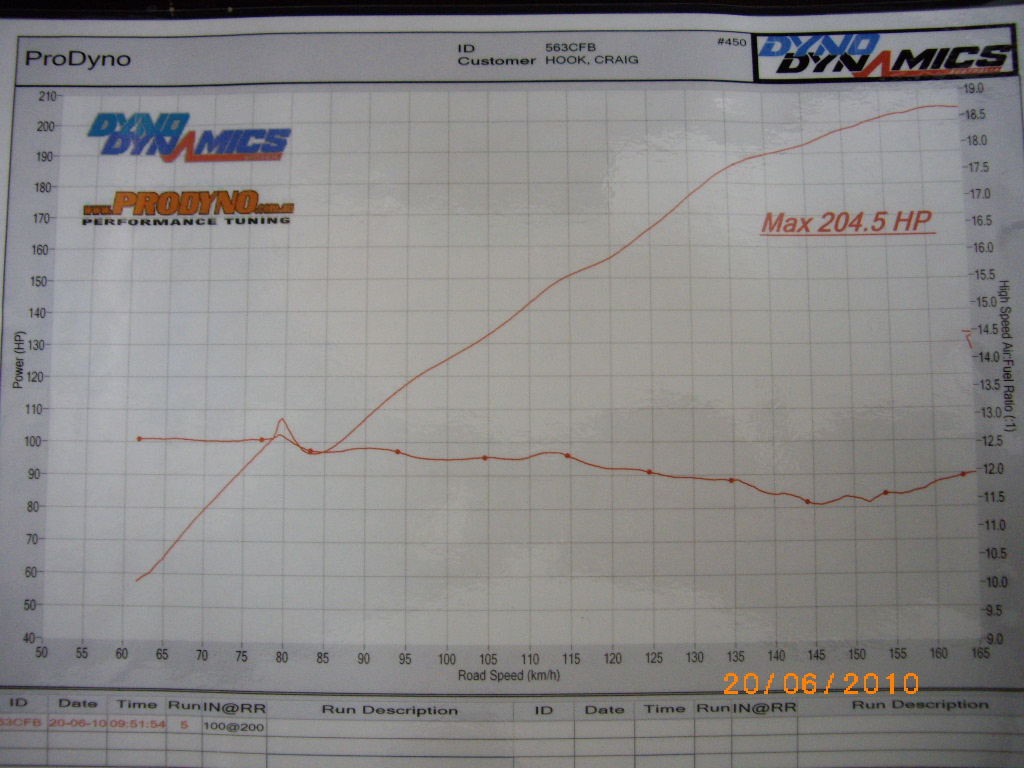

Im using an EA std cam in my ED 4.0.....with a 3.9 head...makes 150rwkw....204.5rwhp.
http://www.youtube.com/watch?v=jJTh9F3Vgg0
The std EA cam has more exhaust duration than a std ED 4.0 cam





Attachments:
IMGP4790.JPG [ 307.58 KiB | Viewed 381 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Mon Nov 15, 2010 11:17 pm
Oompa Loompa
Offline

Posts: 29

Joined: 10th Dec 2009

Ride: 98 XH Falcon Ute

Location: Cairns
QLD, Australia

still got the head off at the moment timing chain guide snapped so new one here tomorra and the hed is now shaved 30 thou so we'll se what happens, thanks for the help guys. the cam will happen a bit further down the track.

what happened at the start of the dyno read there cjh?



_________________

XHII Falcon Ute, power 129.1rwkw 303.6Nm
mods: 2.5inch catback dumped at the diff.

Top
 Profile


 Post subject: Re: XH Cam specs
Posted: Fri Nov 19, 2010 1:48 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

phunkshun wrote:
still got the head off at the moment timing chain guide snapped so new one here tomorra and the hed is now shaved 30 thou so we'll se what happens, thanks for the help guys. the cam will happen a bit further down the track.

what happened at the start of the dyno read there cjh?


Dunno...no idea.....flat spot???
Got new injectors to go in now.....and a new dizzy too...when it shows up.



_________________
