bbm



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: bbm
Posted: Fri Mar 12, 2010 11:19 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

hi.

just wondered

if you put in a el manifold when you put a el ecu in a ed does the power economy switch work in reverse as in if its in power mode its actually now in ecomomy or does it stay the original way it was on the ed ecu

if switch goes in reverse how could you get it to work in the original positions it was with the ed ecu. is it possible to wire up relays so the switch will still work in the original positions it was in the ed with the ed ecu.

how long does it normally take to remove the ed manifold and acc cable and pedal and put the el manifold complete with everything, acc cable/pedal and modify the cruise control cable. how much work is it

is it possible to join part of the ed cruise control cable to the el cruise control cable end with guy wire clamps so the cruise control cable will work again

when you put in the el bbm in a ed do you have to rotate the distributor so the plug faces the other way or will it be fine left the way it faces in the ed model
Top
 Profile


 Post subject: Re: bbm
Posted: Fri Mar 12, 2010 11:38 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

fairmont1 wrote:
hi.

just wondered

if you put in a el manifold when you put a el ecu in a ed does the power economy switch work in reverse as in if its in power mode its actually now in ecomomy or does it stay the original way it was on the ed ecu

if switch goes in reverse how could you get it to work in the original positions it was with the ed ecu. is it possible to wire up relays so the switch will still work in the original positions it was in the ed with the ed ecu.

how long does it normally take to remove the ed manifold and acc cable and pedal and put the el manifold complete with everything, acc cable/pedal and modify the cruise control cable. how much work is it

is it possible to join part of the ed cruise control cable to the el cruise control cable end with guy wire clamps so the cruise control cable will work again

when you put in the el bbm in a ed do you have to rotate the distributor so the plug faces the other way or will it be fine left the way it faces in the ed model


1. yes with the el ecu the power economy light works oposite.
so when the power light is on in the ed cluster its actually in economy mode.. this is because the el cluster has a light for economy instead of power,
i think it would be easier to modify the cluster light filter and fit the letering from the el so it lights up as economy...

2.it would take about 4 hours to remove and replace the manifold and do the bbm conversion..

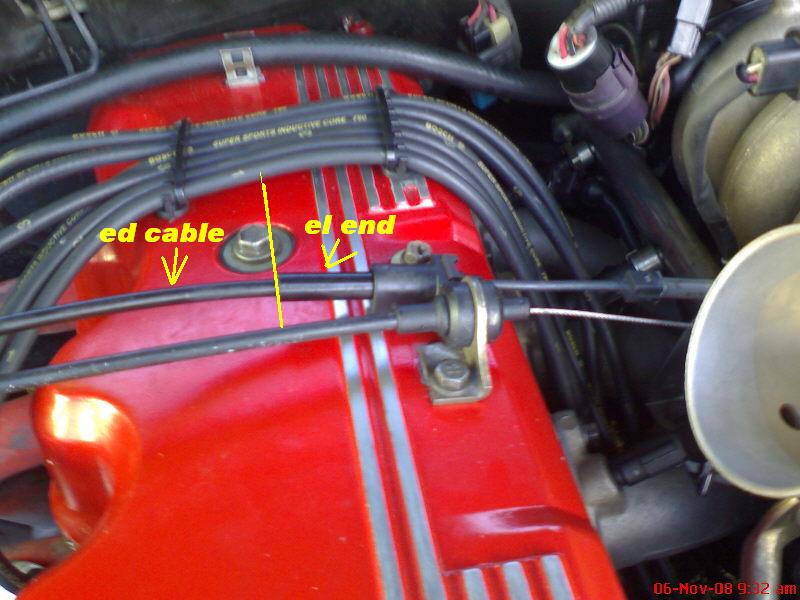

3. yes i choped the ed cruise cable shorter, used the el outer cable end and used a crimp to re secure the el cable end to the ed cable.
Attachment:
DSC01139 aaa.JPG
DSC01139 aaa.JPG [ 68.55 KiB | Viewed 27 times ]


the dizzy will be fine..
you only need to change the dizzy position if your doing the serpentine conversion using the el aircon compressor...
Top
 Profile


 Post subject: Re: bbm
Posted: Fri Mar 12, 2010 11:42 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

is it possible to wire up a relay so the power economy switch in the el ecu works the way it did in the ed ecu
Top
 Profile


 Post subject: Re: bbm
Posted: Sat Mar 13, 2010 2:27 am
Stock as a Rock
Offline

Posts: 114

Joined: 21st May 2009

Ride: EBI Wagon & Mass Transit

Location: The Hills Area
NSW, Australia

TROYMAN wrote:
i think it would be easier to modify the cluster light filter and fit the letering from the el so it lights up as economy...


Actually aren't the EL cluster different as they use an LCD display and the word economy lights up on it so you can't use it to mod the ED one you will need to make your own.
Top
 Profile


 Post subject: Re: bbm
Posted: Sat Mar 13, 2010 4:02 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

LP, only the Fairlane cluster has the Economy word in the LCD screen. All the others have the Economy word along the bottom, which can be modded.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: bbm
Posted: Sat Mar 13, 2010 4:42 pm
Stock as a Rock
Offline

Posts: 114

Joined: 21st May 2009

Ride: EBI Wagon & Mass Transit

Location: The Hills Area
NSW, Australia

BenJ wrote:
LP, only the Fairlane cluster has the Economy word in the LCD screen. All the others have the Economy word along the bottom, which can be modded.

BenJ


Oh well then don't look for a Fairlane cluster to help mod the ED one.
Top
 Profile


 Post subject: Re: bbm
Posted: Sat Mar 13, 2010 4:58 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

I just cut the power bit off my ED xr6 dash (the long black strip on the bottom or the dash with all the warnings and displays) and replaced it with the piece out of a Mitsubishi Colt Dash Cluster I had here for the POWER/ECON light for the 4 spd and power / econ lever. Works well its Orange not green now tho?



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 12:36 am
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

is it possible to use a el xr6 computer in a log manifold, will it just be the same power as a ed xr6 or will it run rough and how do people get the el xr6 computers working with a log manifold and run smooth and whats the fuel consumption like on a el xr6 ecu with a log manifold

only wondered
Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 2:16 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

el had DUEL ignition maps for the BBM (short and long runners) id say you would loose power rather than gain any and pinging may be an issue too



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 4:14 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

is it possible to have the bbm taken out the el ecu so it works like a ed ecu for a cheap price and hoe do you get around the bbm without putting it on
Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 4:40 pm
Getting Side Ways
Offline
User avatar

Posts: 1543

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia

J3 Chip



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole

Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 4:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

fairmont1 wrote:
is it possible to have the bbm taken out the el ecu so it works like a ed ecu for a cheap price and hoe do you get around the bbm without putting it on


if you wanted to do that?? just keep the ed ecu..
the main reason people use the el ecu is for the bbm function...
Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 7:50 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

when you remove the heater steel hose going around the back of the engine how hard is it to get to the bracket at the back of the engine do people do them with the engine/head in
Top
 Profile


 Post subject: Re: bbm
Posted: Sun Mar 14, 2010 9:13 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

fairmont1 wrote:
when you remove the heater steel hose going around the back of the engine how hard is it to get to the bracket at the back of the engine do people do them with the engine/head in


the exhaust manifold needs to come off to get the pipe out, and once the exhaust manifold has been removed you can get to the top bellhousing bolt with a ring spanner to undo the pipe bracket..
Top
 Profile


 Post subject: Re: bbm
Posted: Mon Mar 15, 2010 5:34 pm
Tyre Shredder
Offline

Posts: 376

Joined: 5th Feb 2009

Ride: Ford Falcon XG

Location: Bendigo
VIC, Australia

so for the sake of an example... you wouldnt be able to have serpentine setup and thermos on a car running a log manifiold, without a chip?
