Cant get my dash out :(



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: Cant get my dash out :(
Posted: Sun May 09, 2010 6:11 pm
Stock as a Rock
Offline
User avatar

Age: 25

Posts: 164

Joined: 1st Jan 2010

Ride: EF manual Monty

Location: canberra
ACT, Australia

Hi guys, I am starting my manual conversion on my new falcon, I have done one before on my old car. This time I just cant get the dash out, it will come about an inch away and that is it.
I have removed the 6 nuts or so that sit under the top pannel on the dash, the steering column is dropped, the bolts have been removed from the brake booster, the brake pedal disconnected and the bolt either side of the dash at the bottom has been taken out. I have also removed the cluster, climate control pad, trip comp and all that jazz.

What else is left I really am stuck and cant think of anything, I have tried searching for a docco to find exactly what has to be removed but I really cant find one.


Any chance of any help would be much appreciated.

Cheers



_________________

R.I.P My red beast :(

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 6:19 pm
Smokin em up
Offline

Age: 27

Posts: 259

Joined: 13th May 2008

Gallery: 2 images

Ride: 1995 Fairmont 5 Speed

Location: Traralgon
VIC, Australia

did you get the two bolts either side of the tranny tunnel underneath where the unit sits? theres two tucked up under there somewhere...



_________________

FOR SALE: EBII TICKFORD HEAD. Pm me :)
TOONGABBIE MOTORSPORTS
FAIRMONT 5 SPEED BUILD THREAD: http://www.fordmods.com/the-garage-f53/sam-s-ef-new-car-1995-fairmont-t92322.html
FOR SALE: ford-parts-for-sale-f17/fs-things-that-need-to-go-eseries-bits-t100455.html

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 6:28 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

Can I ask why you are pulling the dash out to do a manual conversion?
Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 6:32 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

nalane is right....to do the pedal box just take out the steering colum and the box should come out.
i pulled a pedal box out of and eb today without taking the dash out



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 6:47 pm
Stock as a Rock
Offline
User avatar

Age: 25

Posts: 164

Joined: 1st Jan 2010

Ride: EF manual Monty

Location: canberra
ACT, Australia

nalane wrote:
Can I ask why you are pulling the dash out to do a manual conversion?


I am not pulling it out, just sliding it back so I can get to the extra bolts, ea-ed are a little diff... but cheers

sams_missen1604 wrote:
did you get the two bolts either side of the tranny tunnel underneath where the unit sits? theres two tucked up under there somewhere...
Cheers

Haha thats what it was mate, I looked around found them and came in to say dw and sure enough you had told me :P



_________________

R.I.P My red beast :(

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 6:59 pm
Smokin em up
Offline

Age: 27

Posts: 259

Joined: 13th May 2008

Gallery: 2 images

Ride: 1995 Fairmont 5 Speed

Location: Traralgon
VIC, Australia

nah its cool mate. i done a conversion myself and had to move mine out then recently did a mates au because his pedalbox FAILED.



_________________

FOR SALE: EBII TICKFORD HEAD. Pm me :)
TOONGABBIE MOTORSPORTS
FAIRMONT 5 SPEED BUILD THREAD: http://www.fordmods.com/the-garage-f53/sam-s-ef-new-car-1995-fairmont-t92322.html
FOR SALE: ford-parts-for-sale-f17/fs-things-that-need-to-go-eseries-bits-t100455.html

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:01 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

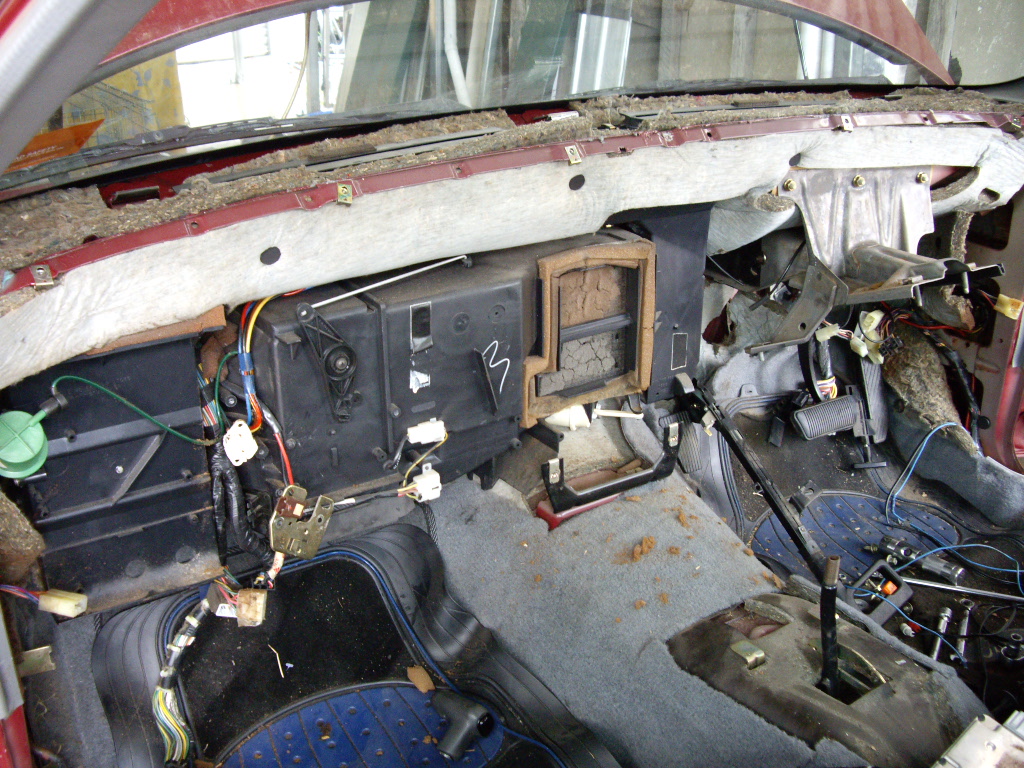

How do you take out the pedal box on an EA to ED without taking the dash assembly out?????

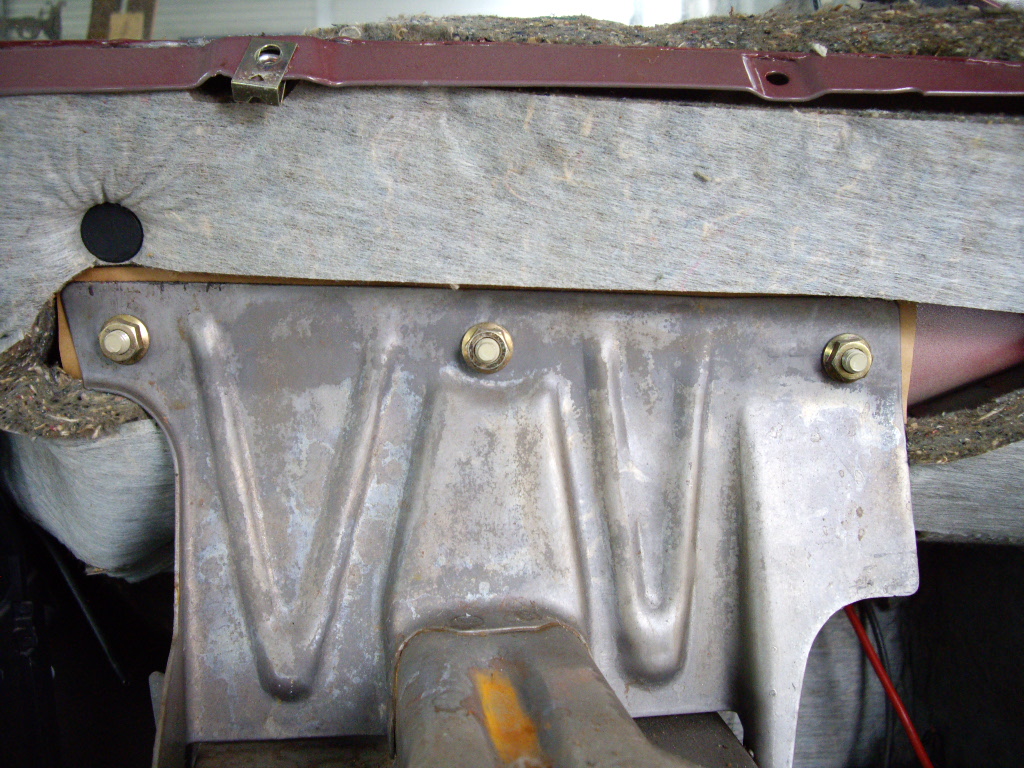

How do you get at the top 3 nuts????





Attachments:
IMGP3513.JPG [ 455.75 KiB | Viewed 62 times ]
IMGP3519.JPG [ 402 KiB | Viewed 57 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:31 pm
Smokin em up
Offline

Age: 27

Posts: 259

Joined: 13th May 2008

Gallery: 2 images

Ride: 1995 Fairmont 5 Speed

Location: Traralgon
VIC, Australia

cjh wrote:
How do you take out the pedal box on an EA to ED without taking the dash assembly out?????
How do you get at the top 3 nuts????



EXACTLY... my ea that was my donor car for a manual conversion had those 3 top bolts and had to unbolt the dash.

Also my ef which I swapped pedal boxes over for the conversion, also has those three top bolts therefore having to unbolt the dash.

Any e-series Pedal box that doesn't would have had to have been f**k with.



_________________

FOR SALE: EBII TICKFORD HEAD. Pm me :)
TOONGABBIE MOTORSPORTS
FAIRMONT 5 SPEED BUILD THREAD: http://www.fordmods.com/the-garage-f53/sam-s-ef-new-car-1995-fairmont-t92322.html
FOR SALE: ford-parts-for-sale-f17/fs-things-that-need-to-go-eseries-bits-t100455.html

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:31 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

just take the cluster out and turn the air vent 90degrees and there right there....im wreaking the car so didnt really care....if it was my daily would have done it different maybe



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:44 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

dash is still in the car so there is my proof...sam can come round an look for a 2nd opinion



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:47 pm
Stock as a Rock
Offline
User avatar

Age: 25

Posts: 164

Joined: 1st Jan 2010

Ride: EF manual Monty

Location: canberra
ACT, Australia

DormanAU wrote:
just take the cluster out and turn the air vent 90degrees and there right there....im wreaking the car so didnt really care....if it was my daily would have done it different maybe


Well this is my new car and will be my daily so that idea was no help :S



_________________

R.I.P My red beast :(

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 8:56 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

the vent can be undone at the the top and a socket with an extension bar can be used. but with ef onwards shouldnt have the top bolts.



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 9:21 pm
Stock as a Rock
Offline
User avatar

Age: 25

Posts: 164

Joined: 1st Jan 2010

Ride: EF manual Monty

Location: canberra
ACT, Australia

Are you talking about the top bolts on the pedal box that your saying arent there on ef onwards?



_________________

R.I.P My red beast :(

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 9:58 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

as far as im aware...i know there not on an au and might of heard the same with el ef...dont quote me exactly as im not 100%



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: Cant get my dash out :(
Posted: Sun May 09, 2010 10:10 pm
Smokin em up
Offline

Age: 27

Posts: 259

Joined: 13th May 2008

Gallery: 2 images

Ride: 1995 Fairmont 5 Speed

Location: Traralgon
VIC, Australia

all E-series have top 3 bolts

i drive an EF and changed my pedal box over for the same conversion.



_________________

FOR SALE: EBII TICKFORD HEAD. Pm me :)
TOONGABBIE MOTORSPORTS
FAIRMONT 5 SPEED BUILD THREAD: http://www.fordmods.com/the-garage-f53/sam-s-ef-new-car-1995-fairmont-t92322.html
FOR SALE: ford-parts-for-sale-f17/fs-things-that-need-to-go-eseries-bits-t100455.html

Top
