 Post subject: el extractor design
Posted: Thu Feb 14, 2013 2:51 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

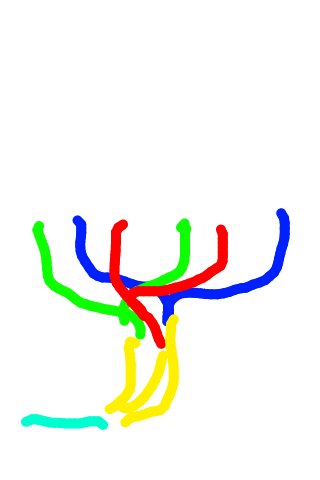

Hi guys and girls, I've just been pondering and googling about while sitting around getting paid... If I were to design and build my own set of extractors for my i6 mont would I have the primaries collecting as such...? (Please excuse the horridness of my drawing, did it with a sketch app on my phone lol)
Attachment:
File comment: Extractors
rsz_1image_2013-02-14_134512.jpg [ 12.84 KiB | Viewed 70 times ]

Blue is for cyl 1+5, red 2+4, green 3+6. That is the correct matching for the primaries yeah? Or have I got my shiz all twisted?



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: el extractor design
Posted: Thu Feb 14, 2013 2:57 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

It should be as like the Pacie 4480's.
1 & 6
2 & 5
3 & 4.
Each of those cylinders rise and fall at the same time, but are at different points in the 4 stroke cycle.
One will be at intake, while the partner will be at the power stroke.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: el extractor design
Posted: Thu Feb 14, 2013 3:12 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

Awesome, cheers bro



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: el extractor design
Posted: Thu Feb 14, 2013 4:31 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

So the way I had it, it would have been chitty chitty bang bang tractor sounding? LOL



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: el extractor design
Posted: Fri Feb 15, 2013 10:49 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Genie do a set of extractors with pairs 1-2, 3-4, 5-6. Apparently they have a pretty good sound.
They are very short, so they probably aren't really designed with pulse tuning in mind.
I'd say their only benefit is smoother pipes compared to the stock manifold.
While maybe not the best design, I doubt they could be worse than the stock manifold.


The pacemaker 4480 design is such that each secondary has one exhaust pulse every 360 degrees of crank rotation.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el extractor design
Posted: Fri Feb 15, 2013 6:48 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

I've seen the genie ones. Like you said mad they are very neat looking that's for sure.



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: el extractor design
Posted: Mon Apr 08, 2013 9:40 pm
Oompa Loompa
Offline

Age: 26

Posts: 37

Joined: 4th Aug 2012

Gallery: 2 images

Ride: XH XR6

Location: Melbourne
VIC, Australia

hey lads,

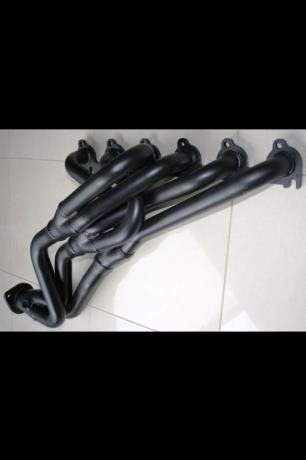

im trying for a pacies like these.. really hard to come by though for the money. these are the "Comp" style/model.

everyday im looking at my Ebay hoping not to be outbid
:x





Attachments:
image_1365417270650515.jpg [ 9.94 KiB | Viewed 1901 times ]



_________________

XHI Tickford XR6, 5 speed, Wade 977b@110 + Cam Gear , Pacemaker 4480, 100c Cat, 2 1/2"CB,
front camber kit, (Est 155 RwKw)

There's no man in automatic!
-----------------------
Coming soon!
Port & Polish on Head
Custom Grind Camshaft
(hoping for 200RwKw)

Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 12:25 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

XHR6 wrote:
hey lads,

im trying for a pacies like these.. really hard to come by though for the money. these are the "Comp" style/model.

everyday im looking at my Ebay hoping not to be outbid
:x


Buying second hand or brand new? I got my 4480s for about $400 if I remember correctly with new gasket and bolts.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 10:36 am
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

best price that i can find

http://www.ebay.com.au/itm/Ford-EA-EF-6 ... 500wt_1144

got a quote of $520 all up from forum sponsor on AFF which isn't to good of a price

Who knows if anyone of these places actually have them in stock even on Ebay :(
Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 11:38 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

EF_wanabe wrote:
best price that i can find

http://www.ebay.com.au/itm/Ford-EA-EF-6 ... 500wt_1144

got a quote of $520 all up from forum sponsor on AFF which isn't to good of a price

Who knows if anyone of these places actually have them in stock even on Ebay :(


Ebay, or even some forum sponsors, aren't always cheaper. Give some local smaller exhaust workshops. They might want to offload some stock. I can't remember where I bought mine from so can't help you there, but it was a small workshop I found in the local paper.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 12:30 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

XHR6 wrote:
hey lads,

im trying for a pacies like these.. really hard to come by though for the money. these are the "Comp" style/model.

everyday im looking at my Ebay hoping not to be outbid
:x


the thing with these ones, if you read the listing they were used as r&d and they actually have smaller than normal primary pipes compared to normal pacemakers..
Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 10:31 pm
Oompa Loompa
Offline

Age: 26

Posts: 37

Joined: 4th Aug 2012

Gallery: 2 images

Ride: XH XR6

Location: Melbourne
VIC, Australia

How much smaller?
It's a shame cause I have bidded on them.



_________________

XHI Tickford XR6, 5 speed, Wade 977b@110 + Cam Gear , Pacemaker 4480, 100c Cat, 2 1/2"CB,
front camber kit, (Est 155 RwKw)

There's no man in automatic!
-----------------------
Coming soon!
Port & Polish on Head
Custom Grind Camshaft
(hoping for 200RwKw)

Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 11:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the primaries on those ones are 1 1/2" compared to the normal 1 5/8" so the
Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 11:09 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

That was the original 'comp' design by pacemaker. They revised it later and used larger primaries.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el extractor design
Posted: Tue Apr 09, 2013 11:28 pm
Oompa Loompa
Offline

Age: 26

Posts: 37

Joined: 4th Aug 2012

Gallery: 2 images

Ride: XH XR6

Location: Melbourne
VIC, Australia

So it's not good?
I'm upto 365 on it brand new. Is that even worth it?
Man, that's really turned my day upside Down.
So much for a "happy" birthday.



_________________

XHI Tickford XR6, 5 speed, Wade 977b@110 + Cam Gear , Pacemaker 4480, 100c Cat, 2 1/2"CB,
front camber kit, (Est 155 RwKw)

There's no man in automatic!
-----------------------
Coming soon!
Port & Polish on Head
Custom Grind Camshaft
(hoping for 200RwKw)
