ok
i finally got around to doing the belt conversion.
it was fairly straight forward.

i had to modify the ef alternator bracket to fit the ef alternator onto the au engine.
i also had to change the alternator plug over
i ended up working out the aircon line issue i used the pump lines from a eb (thanks to benj) i had to bend one of the pipes alittle bit and i used the smaller line to the condensor from a ed with the ef tx valve.but i needed to drill out the small hole in the tx valve to 11mm on the firewall side to fit. as the ea has a slightly larger pipe coming from the heater box.
so now i just need to get the aircon regassed.

its now up and runnung but its sprung an oil leak from one of the timing case cover bolts which ill fix tomorrow as ive ran out of daylight..

here are a few pics.





Attachments:
DSC00731.JPG [ 281.7 KiB | Viewed 25 times ]

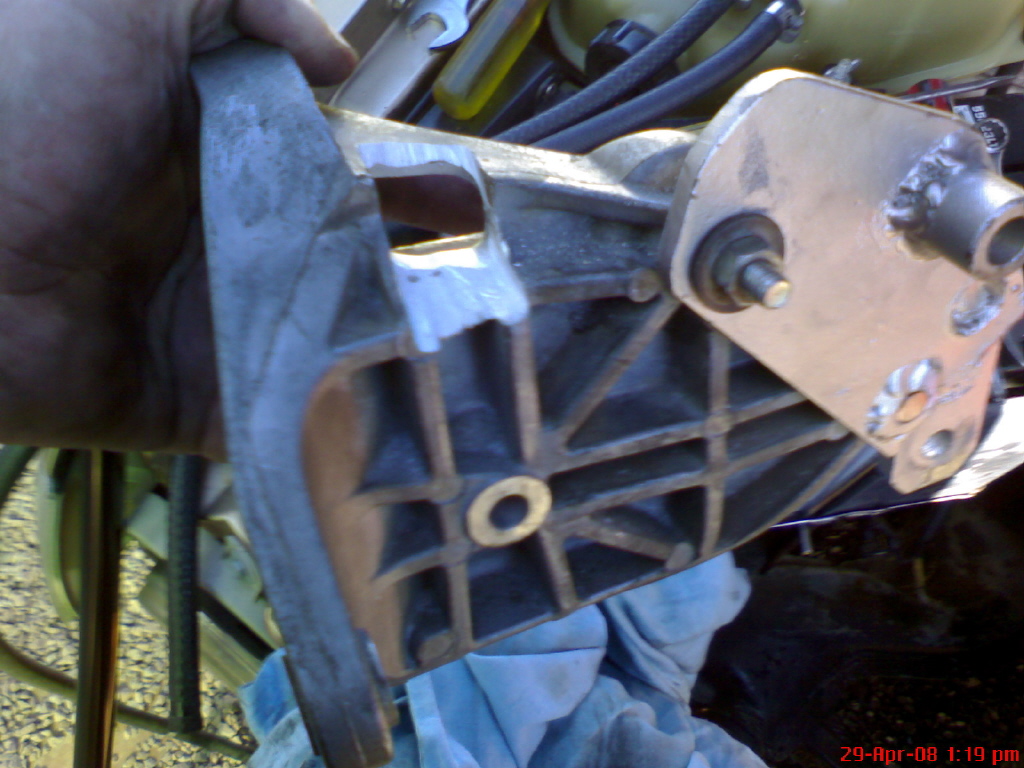

File comment: modified alt bracket
DSC00732.JPG [ 427.34 KiB | Viewed 30 times ]

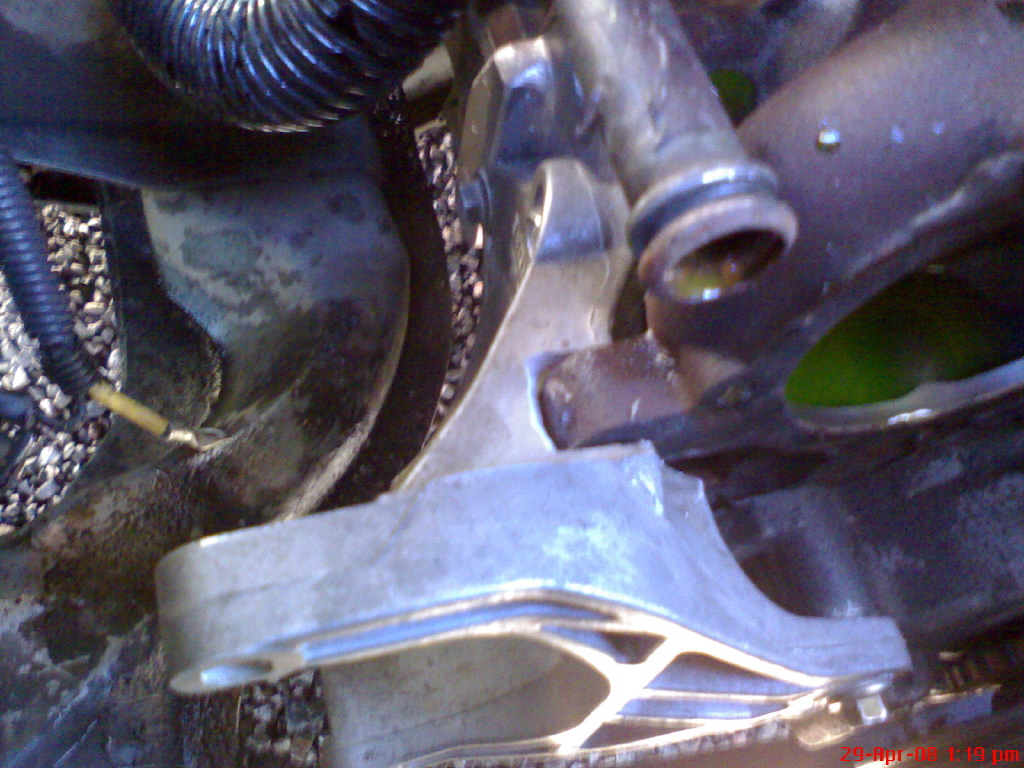

File comment: all pullies on
DSC00733.JPG [ 310.3 KiB | Viewed 30 times ]

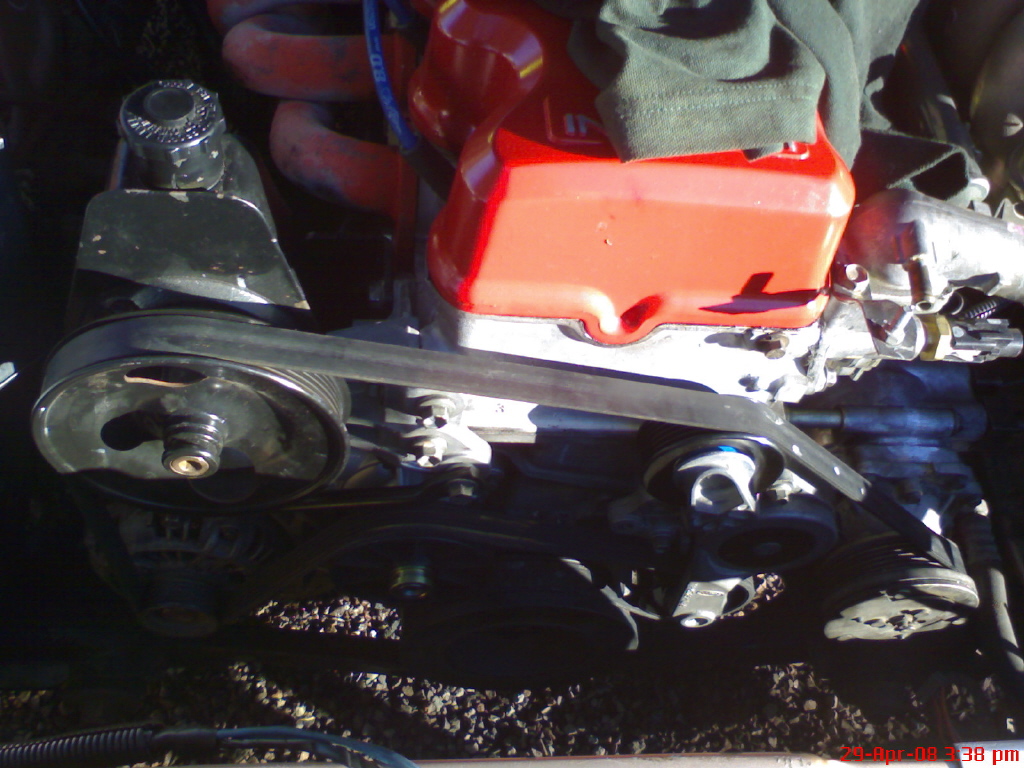

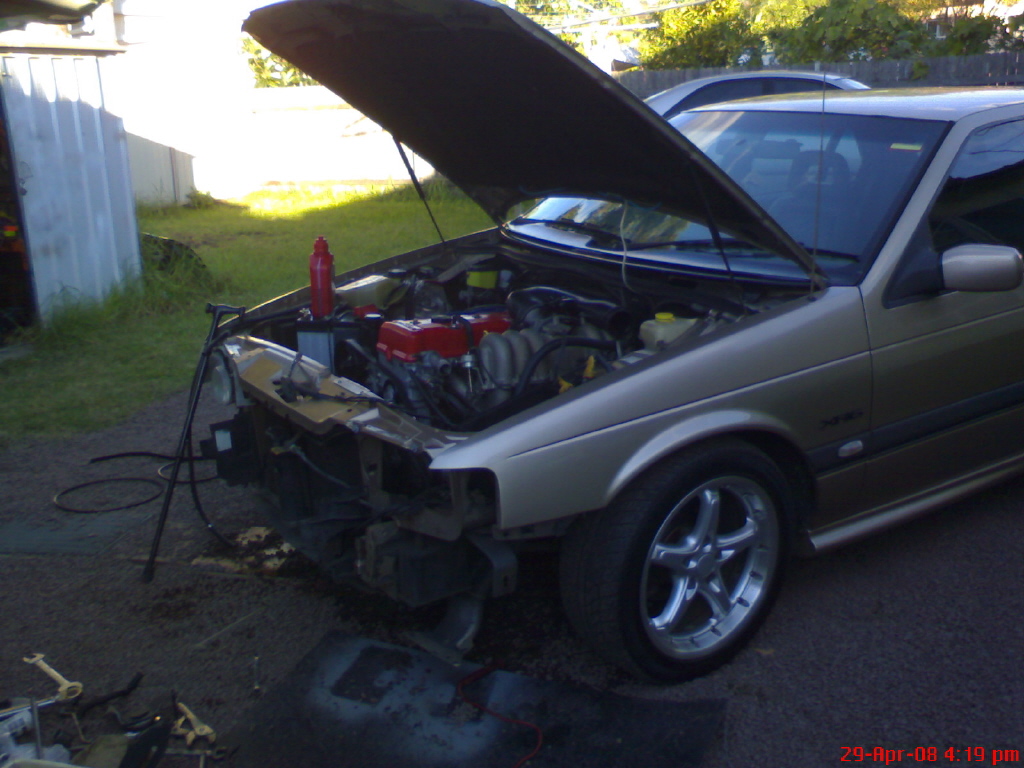

File comment: all apart
