what is the firing order for an au falcon?



Page 1 of 1 [ 13 posts ]


 Post subject: what is the firing order for an au falcon?
Posted: Wed Jun 08, 2011 9:20 pm
Fordmods Newbie
Offline

Age: 37

Posts: 1

Joined: 8th Jun 2011

Ride: 2001 ford au falcon forte

Location: melbourne
VIC, Australia

what is the firing order for a 01 falcon 4.0l and what order do the leads go on the plugs from front to back? any sugestions?
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Wed Jun 08, 2011 10:16 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

The coil is numbered.

<----Front.... 1 2 3
..................6 5 4

%99 of leads will have the plug number on it. It's pretty hard to get wrong.

Last edited by tickford_6 on Wed Jun 08, 2011 10:35 pm, edited 2 times in total.

Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Wed Jun 08, 2011 10:17 pm
Technical Contributor
Offline
User avatar

Age: 44

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

1-5-3·6-2-4



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Thu Jun 09, 2011 1:39 am
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

tickford_6 wrote:
The coil is numbered.

<----Front.... 1 2 3
..................6 5 4

%99 of leads will have the plug number on it. It's pretty hard to get wrong.


TICKFORD _6 YOU ARE UNDER ESTIMATING THE KNOWLEDE OF SOME MEMBERS WITH THAT POST...



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Thu Jun 09, 2011 8:03 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

EL___Fairmont wrote:
tickford_6 wrote:
The coil is numbered.

<----Front.... 1 2 3
..................6 5 4

%99 of leads will have the plug number on it. It's pretty hard to get wrong.


TICKFORD _6 YOU ARE UNDER ESTIMATING THE KNOWLEDE OF SOME MEMBERS WITH THAT POST...



If they can't get it from that, they shouldn't be opening the bonnet and deserve to get it wrong.
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Sat Jun 11, 2011 3:45 am
Tyre Shredder
Offline
User avatar

Age: 49

Posts: 391

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

LOL :)
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Sat Jun 11, 2011 8:23 am
Getting Side Ways
Offline

Posts: 676

Joined: 26th Jul 2009

Ride: EF daily, xc project

Location: Park Central
NSW, Australia

its the same as an ef



_________________

ef falcon daily driver
78 xc falcon 500 project
http://www.fordmods.com/the-garage-f53/bradley4567-s-xc-t83750.html

calling an illegal alien an 'undocumented immigrant' is like calling a drug dealer an 'unlicensed pharmacist'

Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Fri Oct 23, 2015 7:06 pm
Fordmods Newbie
Offline

Age: 58

Posts: 2

Joined: 23rd Oct 2015

Ride: BA XR 8 ford mk3 Zephyr

Location: Hervey Bay
QLD, Australia

Hi guys just replaced the coil pack on my Au falcon .its a pain of a job .good luck
You need to pull out the air box remove clamp and 4x 10mm bolts to get in there in the first place .using a light will help .Unplug all leads remove the wiring plug form the coil pack .remove 3x8mm bolts this is on the Au 2/3 model .slide coil pack to the back towards the fire wall and remove down to the ground or along side of the engine to the front of the car as I did .Then replace the new coil pack as you pull the other one but don't drop the new .lol
On the coil pack it Will have numbers on it for the spark plugs as well the spark plugs will have numbers on them as well .
Straight 6cl engine

Your spark plug leads are numbered
As is the coil pack so each plug lead goes to each number on the coil pack

So each numbered spark plug goes from number 1 one spark plug at the front of the engine ( front of the car ) through to number 6 spark plug at the fire wall end of the engine . 123456 ( at the back of the engine )

Hope this helps the handy man and save some bucks
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Fri Oct 23, 2015 7:07 pm
Fordmods Newbie
Offline

Age: 58

Posts: 2

Joined: 23rd Oct 2015

Ride: BA XR 8 ford mk3 Zephyr

Location: Hervey Bay
QLD, Australia

Hi guys just replaced the coil pack on my Au falcon .its a pain of a job .good luck
You need to pull out the air box remove clamp and 4x 10mm bolts to get in there in the first place .using a light will help .Unplug all leads remove the wiring plug form the coil pack .remove 3x8mm bolts this is on the Au 2/3 model .slide coil pack to the back towards the fire wall and remove down to the ground or along side of the engine to the front of the car as I did .Then replace the new coil pack as you pull the other one but don't drop the new .lol
On the coil pack it Will have numbers on it for the spark plugs as well the spark plugs will have numbers on them as well .
Straight 6cl engine

Your spark plug leads are numbered
As is the coil pack so each plug lead goes to each number on the coil pack

So each numbered spark plug goes from number 1 one spark plug at the front of the engine ( front of the car ) through to number 6 spark plug at the fire wall end of the engine . 123456 ( at the back of the engine )

Hope this helps the handy man and save some bucks
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Fri Dec 04, 2015 7:47 pm
Fordmods Newbie
Offline

Age: 31

Posts: 5

Joined: 31st Aug 2013

Ride: AU Series I XR6

Location: Bathurst
NSW, Australia

I got a series 3 Au xr6 just bought it all the leads are all over the place (should have checked them and marked them before i took em off but anyway)marked lead 1 only reaches 4 and 5 so I took them all off to start from scatch THERE ARE NO NUMBERS MARKED ON COIL PACK. I have tried the combination from the front《1,2,3 6,5,4.No good! Missfire missfire backfire.And to avoid any confusion I have a series 1 coil pack which is marked and its a different coil pack.
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Fri Dec 04, 2015 7:48 pm
Fordmods Newbie
Offline

Age: 31

Posts: 5

Joined: 31st Aug 2013

Ride: AU Series I XR6

Location: Bathurst
NSW, Australia

I got a series 3 Au xr6 just bought it all the leads are all over the place (should have checked them and marked them before i took em off but anyway)marked lead 1 only reaches 4 and 5 so I took them all off to start from scatch THERE ARE NO NUMBERS MARKED ON COIL PACK. I have tried the combination from the front《1,2,3 6,5,4.No good! Missfire missfire backfire.And to avoid any confusion I have a series 1 coil pack which is marked and its a different coil pack.
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Fri Dec 04, 2015 8:27 pm
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Attachment:

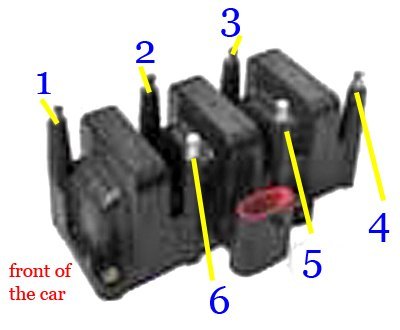

AU Coil lead numbers.jpg
AU Coil lead numbers.jpg [ 19.54 KiB | Viewed 647 times ]


No the best pic of the coil, but shows you the coil to cylinder numbers. EF and AU coils have the numbers marked on the coil pack. Order is the same for EF, AUI and AUII/III.
Top
 Profile


 Post subject: Re: what is the firing order for an au falcon?
Posted: Mon Nov 05, 2018 9:07 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Thanks for the pic that shows numbers, the coil pack I have does not have any numbers on the coil pack.
