 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Wed Oct 21, 2009 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Brendan000 wrote:
how do you do the blue lights in the clock and odometre?


Pretty sure theres pics in this thread....



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Fri Nov 13, 2009 8:39 am
Smokin em up
Offline

Age: 37

Posts: 262

Joined: 15th Aug 2007

Gallery: 3 images

Ride: Au fairmont seires I

Location: Sunshine coast
QLD, Australia

Geoffy91 wrote:
Trav 4.0 wrote:
Can anything be done with the EA-B-D cluster?
Can't imagine you can with the colour it is already?


my cousin has an EB and he done the blue dash mod...
dont have any pics but i might be able to get some in a few days.
but it can be done.


i have posted a pic in below thread, and i can also supply a set of 10 blue for an ea eb ed!!

ford-interior-f14/blue-led-t83550.html



_________________

People hate the au series but i wouldnt have it any other way!!!

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Fri Nov 13, 2009 8:49 am
Smokin em up
Offline

Age: 37

Posts: 262

Joined: 15th Aug 2007

Gallery: 3 images

Ride: Au fairmont seires I

Location: Sunshine coast
QLD, Australia

AUII.Denim wrote:
StrawbZ wrote:
i just did mine on my AU, will get pics later, was just wondering what people did witht there orange needles so that you could see them


Yeah, i have the same prob. I bought 10$ blue leds off ebay from china, but didnt realise blue doesnt illuminate through the red/orange needles. I questioned a guy off ebay who was selling white dash conversions for AU's if he would sell me white/ but he wanted 50$ for them, if i sent him the orange ones i had....
So yeah, if anyone can shed some light on a cheap fix it would be much appreciated. driving at night without being able to check ur speed easily is as annoying as f***.



easiest fix is what i did, take needles off get a sharp blade or razor, simply take off the orange then either leave it clear like i did, or paint the back with white paint or white out etc. done!!!!



_________________

People hate the au series but i wouldnt have it any other way!!!

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sun Nov 15, 2009 12:40 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

Futuraclassic wrote:
AUII.Denim wrote:
StrawbZ wrote:
i just did mine on my AU, will get pics later, was just wondering what people did witht there orange needles so that you could see them


Yeah, i have the same prob. I bought 10$ blue leds off ebay from china, but didnt realise blue doesnt illuminate through the red/orange needles. I questioned a guy off ebay who was selling white dash conversions for AU's if he would sell me white/ but he wanted 50$ for them, if i sent him the orange ones i had....
So yeah, if anyone can shed some light on a cheap fix it would be much appreciated. driving at night without being able to check ur speed easily is as annoying as f***.



easiest fix is what i did, take needles off get a sharp blade or razor, simply take off the orange then either leave it clear like i did, or paint the back with white paint or white out etc. done!!!!


Just remember to scrape it carefully, don't go rambo style on it because the scratches will show up, just gently and lightly scape it off. One of the needles i did on mine had a big scratch in it which look crap but it was one of the smaller ones on the oil gasuge so it wasn't so bad. If it was the speedo I would have been p****d.
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Tue Nov 17, 2009 2:51 pm
Stock as a Rock
Offline
User avatar

Age: 26

Posts: 114

Joined: 21st Jun 2009

Gallery: 9 images

Ride: AU Fairlane

Location: Adelaide
SA, Australia

heres my ED dash with white faces but thi8nking of goin red soon just because it is a red car

its much brighter in person its just the camera phone ;)





Attachments:
14102009652 [Desktop Resolution].jpg
14102009652 [Desktop Resolution].jpg [ 87.83 KiB | Viewed 66 times ]
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Tue Nov 17, 2009 8:01 pm
Getting Side Ways
Offline
User avatar

Posts: 771

Joined: 2nd Oct 2008

Gallery: 6 images

Ride: 94 ED falcon

Location: Brisbane, 4173
QLD, Australia

If your changing to red ill by your BLue set up if your interested?

PM me if you are.

Regards.
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Tue Nov 24, 2009 12:35 am
Oompa Loompa
Offline

Age: 25

Posts: 49

Joined: 1st Dec 2008

Gallery: 24 images

Ride: FALCON EL 1996

Location: Woodcroft
SA, Australia

hey guys heres my dash.

(During the day)

(At Night)



_________________

|17" Rims|Lukey Headers|2.5" Custom Exhaust|Au Rocker|Pedders Lowered Sports Suspension|:D
"A Commodore looks like it could kick your a**; a Falcon looks like it's coming over to do it."

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Jan 30, 2010 1:01 am
Fordmods Newbie
Offline

Age: 28

Posts: 3

Joined: 29th Jan 2010

Ride: 1993 Ford Falcon ED

Location: Brisbane
QLD, Australia

Wow Brett-one the pic of ur second attempt at it looks great :) I'm tryin 4 a similar look on my ED
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Jan 30, 2010 3:03 pm
Parts Gopher
Offline

Age: 33

Posts: 60

Joined: 9th Jun 2009

Ride: FORD '89 DA LTD

Location: Melbourne
VIC, Australia

I slapped some in my last EB S2 Fairmont (with the prism reflective bit, not backlit) and turned out brilliant!

Only prob i ran into is that the original needles were painted orange, and does not reflect green light, so i prized each needle off and sprayed them with some silver paint I had.

b**ch of a job but I was happy :) (til i wrote the car off 3 days later!! :( )

heres the 2 pics in the lightest and darkest positions:

This was all done with T10 triple LED's purchased from my local Autobarn.
Also did the climate control, but couln't change the top globe as it's a long globe soldered to the board.

Cheers,
Spud.



_________________

SPUDLEY'S LTD BUILD THREAD -> the-garage-f53/spudley-s-ltd-build-t87533.html

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Jan 30, 2010 4:04 pm
Tyre Shredder
Offline
User avatar

Posts: 340

Joined: 4th Nov 2009

Ride: EFII Fairmont XR8

Location: hobart
TAS, Australia


Kept the back lighting orange because it would be impractical for the day, and I like the look.



_________________


Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Mar 19, 2011 5:29 am
Getting Side Ways
Offline

Age: 29

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

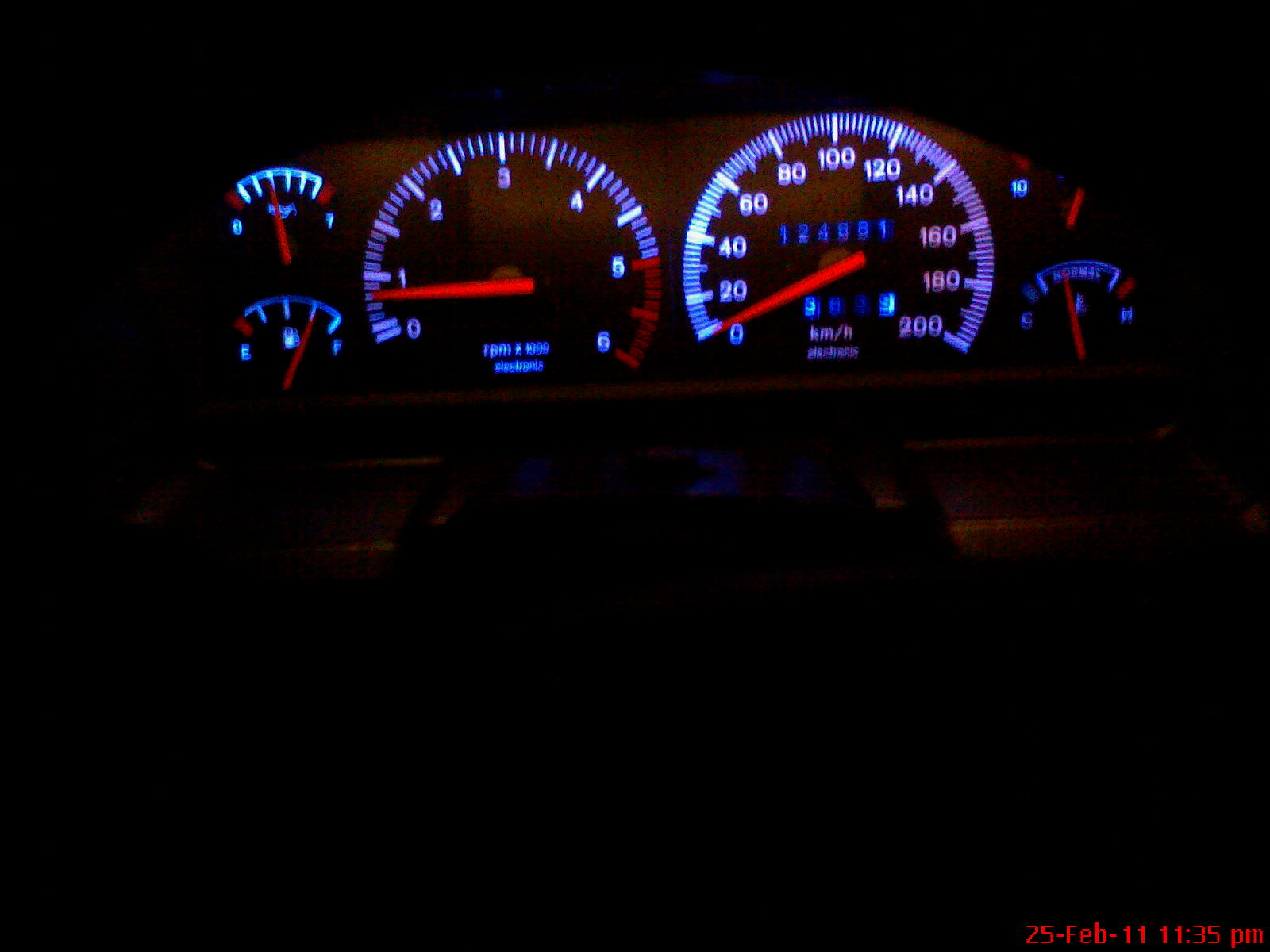

here is mine pretty standard stuff





Attachments:
DSCF0045.JPG [ 187.83 KiB | Viewed 63 times ]
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Mar 19, 2011 6:52 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

I've experimented with a few globes he's what I've found

Jaycar blue LEDs :
They come with bulb holder aswell, they were not very bright at all, didn't spread light much across the dash face. Also they looked aqua blue. I like the darker blue better

LEDs that insert into existing bulb holder:

They were very bright out side the dash but didn't focus the light so once inside the dash they looked dull. Good for a trip computer screen where light needs to be spread.


LEDs I brought off eBay and soldered into existing bulb holder:

These are the best LEDs I've used, because they focus the light at once point, all the LEDs brightness is focused on the optic screen under the dash face which then carries the light to the needles and across the face of the dash.

What I found was that LEDs that spread the light cant focus it on the optic reflector which then wont
Carry much light to the needles.
I have a el xr6 dash so the speedo, tacho, fuel , and temp were bright but the oil and volts were dull.

So next time you purchase LEDs get bright ones but also make sure they focus the light to a point, so all the light is focused on the optic reflector.
I have made some new LEDs just gotta test them.
I had home made LEDs in My Ef and they were bright they lit up my whole dash. Ive been using 2 dashes ( the one which was in my Ef which was a fairmont dash with el faces, and the dash in my xr6 )
And both are the same with the same LEDs so it's not the dash it's the LEDs.
Just thought I'd clear up that variable



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Mar 19, 2011 10:14 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

considering this thread has been brought back to life...

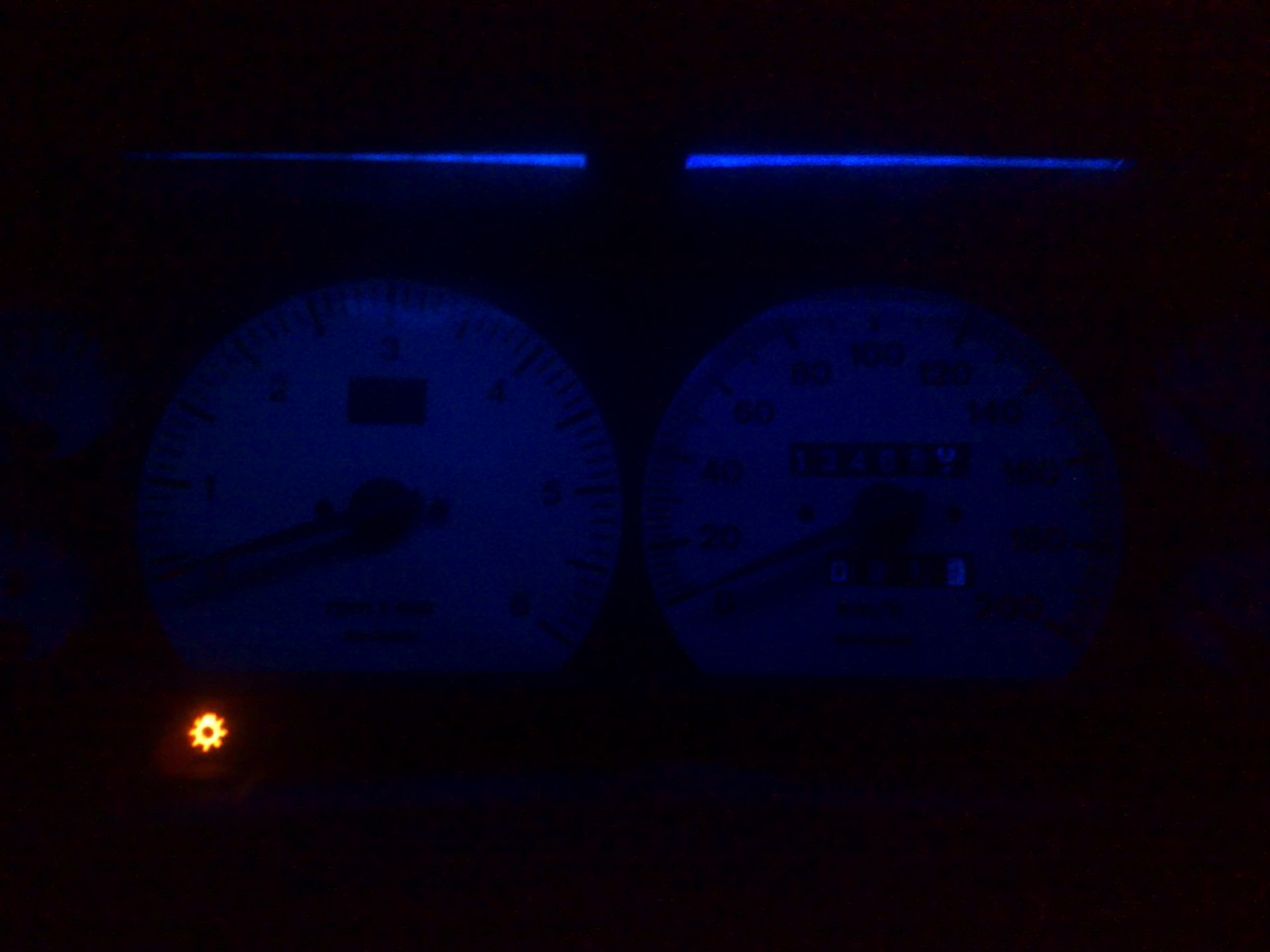

as blue is blue, here is me ed cluster in blue!





Attachments:
ABCD0006.JPG [ 131.62 KiB | Viewed 90 times ]
Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Mar 19, 2011 5:49 pm
Smokin em up
Offline

Age: 37

Posts: 262

Joined: 15th Aug 2007

Gallery: 3 images

Ride: Au fairmont seires I

Location: Sunshine coast
QLD, Australia

ok guys well im a trusted seller on ebay and i have sold hundreds of leds for ea eb ed ef el au

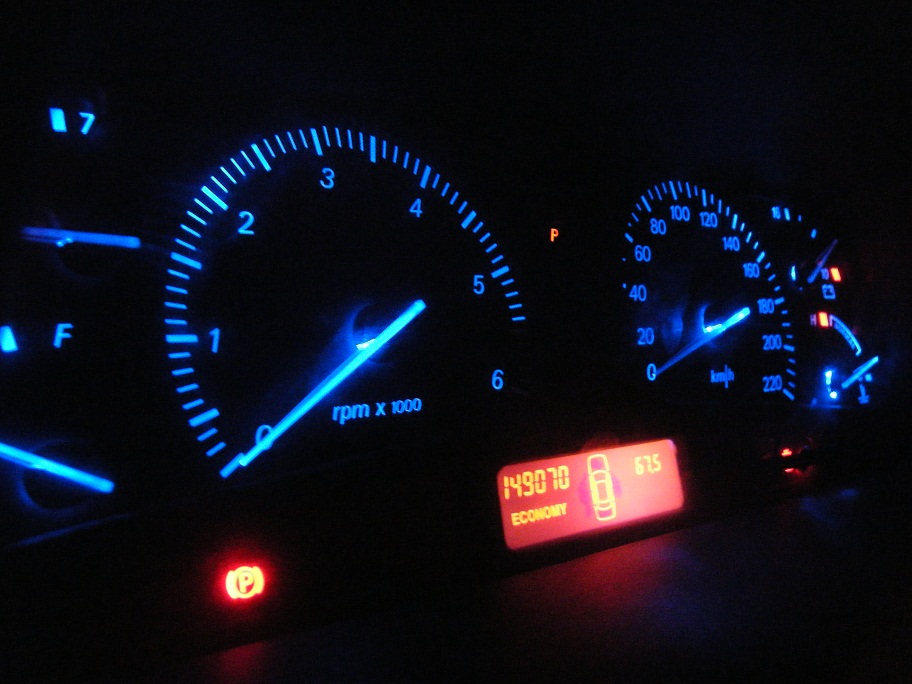

here is my au fairmont cluster and climate control

here is my store if anyone is interested in sets of 10 for a decent price
http://stores.ebay.com.au/id=149377665



_________________

People hate the au series but i wouldnt have it any other way!!!

Top
 Profile


 Post subject: Re: Pics of led modded dashes pls (with new dash pics :D)
Posted: Sat Mar 19, 2011 5:51 pm
Smokin em up
Offline

Age: 37

Posts: 262

Joined: 15th Aug 2007

Gallery: 3 images

Ride: Au fairmont seires I

Location: Sunshine coast
QLD, Australia

also for my needles, i just used cotton tips and nail polish remover to rub the orange off my needles. i did the same with climate control and odometer orange filter then put them back in. worked great.



_________________

People hate the au series but i wouldnt have it any other way!!!

Top
